25Bend-Tech Dragon A400
Assembly Manual
Beginning Assembly
03

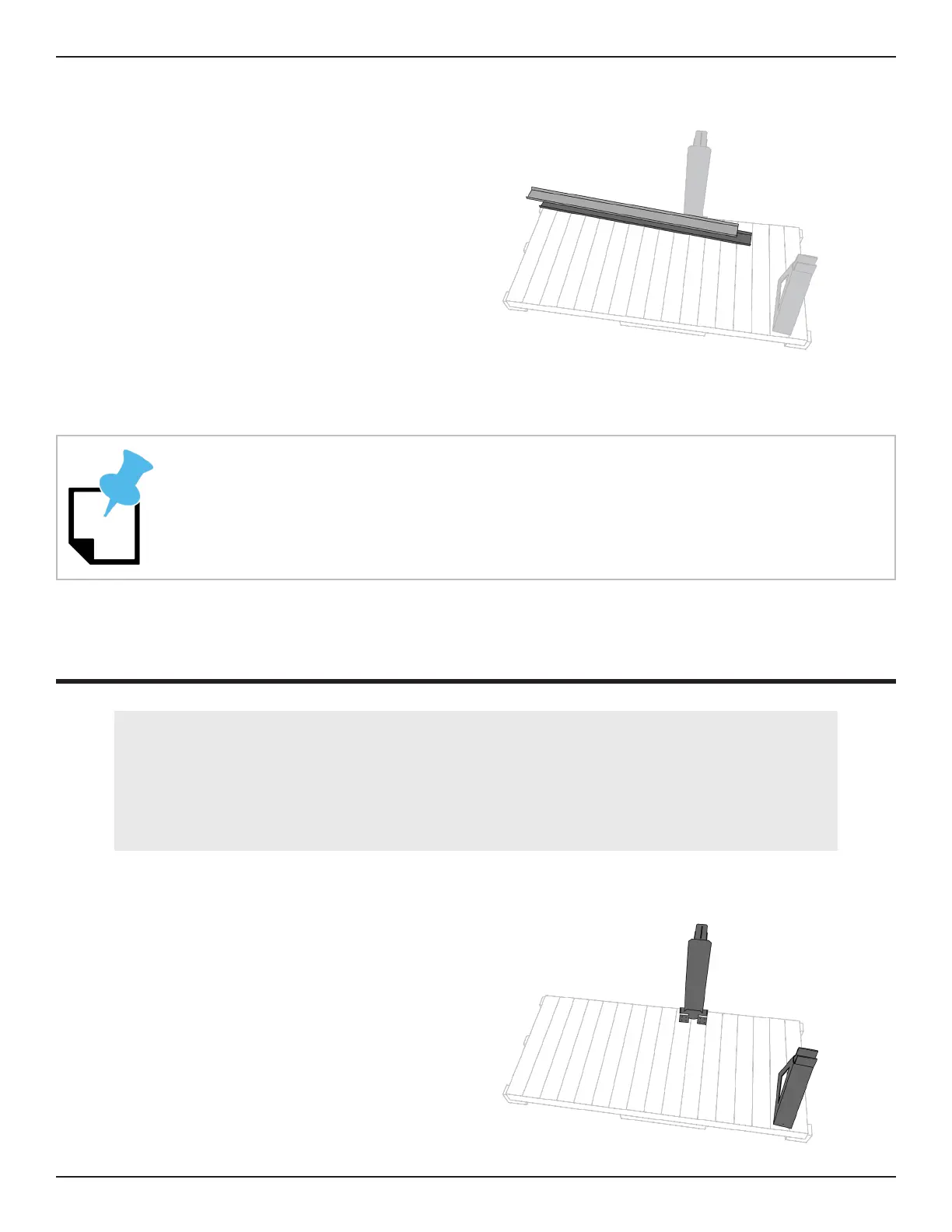

The Belt Track Guide is numbered to
coincide with the Rail sections and
Rail Support Legs. There is one Belt
Track Guide section that features a
large hole with a rubber grommet.
The hole and Grommet should be
placed nearest the Control Box,
nearest the Head section of the
machine, between positions 3 and
4. Install the second Belt Track
Guide section matching the No. 4
and No. 5 stickers to the No. 4 and
No. 5 positions on the Rail and Rail
Support Legs.
3.13 Beak
The Beak of the machine serves as
a parts catcher. The Beak prevents
parts that have been cut by the
machine from falling to the ground
and possibly being damaged or
causing injury. The Beak allows the
Operator to safely handle hot parts.
The Rail Beam at the Tail of the machine is pre-assembled at the Bend-Tech
manufacturing facility and will arrive with the Belt Track Guide pre-installed.
Tools Needed
•
and ratchet
•
Hardware Needed
• Hardware Bag No. 2
