Bend-Tech Dragon A400 Assembly Manual

44 Bend-Tech Dragon A400
Assembly Manual
Torch
08
8.2.2 Brass Gear Rack Hypertherm Powermax65/85

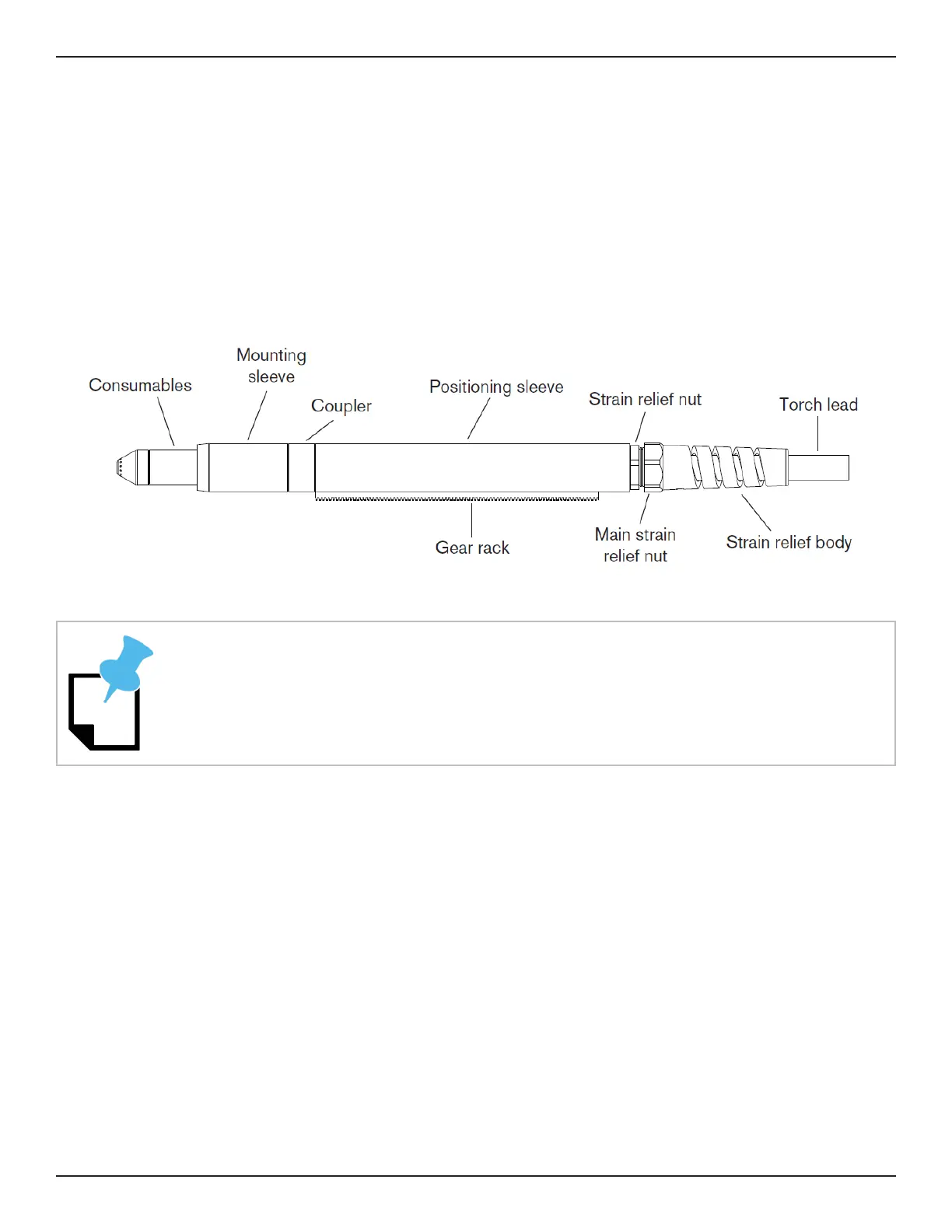

The Hypertherm Powermax65 and Powermax85 Torch Wand is equipped with a brass gear
rack. The Installer will need to remove the brass gear before installing the Torch Wand. First,
remove the rubber cap from the Torch. Loosen the Mounting Sleeve and Coupler, just below
the Torch rack gear, by twisting the Positioning Sleeve counterclockwise. Remove the Gear
Rack. Reassemble the Torch in the order is was disassembled. The Torch is now ready to be
mounted on the Toolhead.
When reassembling the Torch, do not reinstall the rack gear.
