Bend-Tech Dragon A400 Assembly Manual

33Bend-Tech Dragon A400
Assembly Manual
Cables and Control Box
05
5.5 Control Box Connections
Locate the Ethernet cable, Power Cable and Torch Cable in the Miscellaneous box. Connect
the Ethernet cable to the Ethernet port on the middle left hand side of the Control box, ensuring
it clicks into place.
Connect the Power Cord to the main power connection at the bottom of the Control Box,
ensuring it is seated in the plug.
Connect the Torch Cable to the Torch Cable Connection at the bottom of the Control Box.
Tighten the Torch Cable securely by hand.
Y
A B
Z
X
Y C X
-
B A+ A-
EStop
Engraver Torch
Laser
Gate EStop EStop
Z
+ Z-
L
E

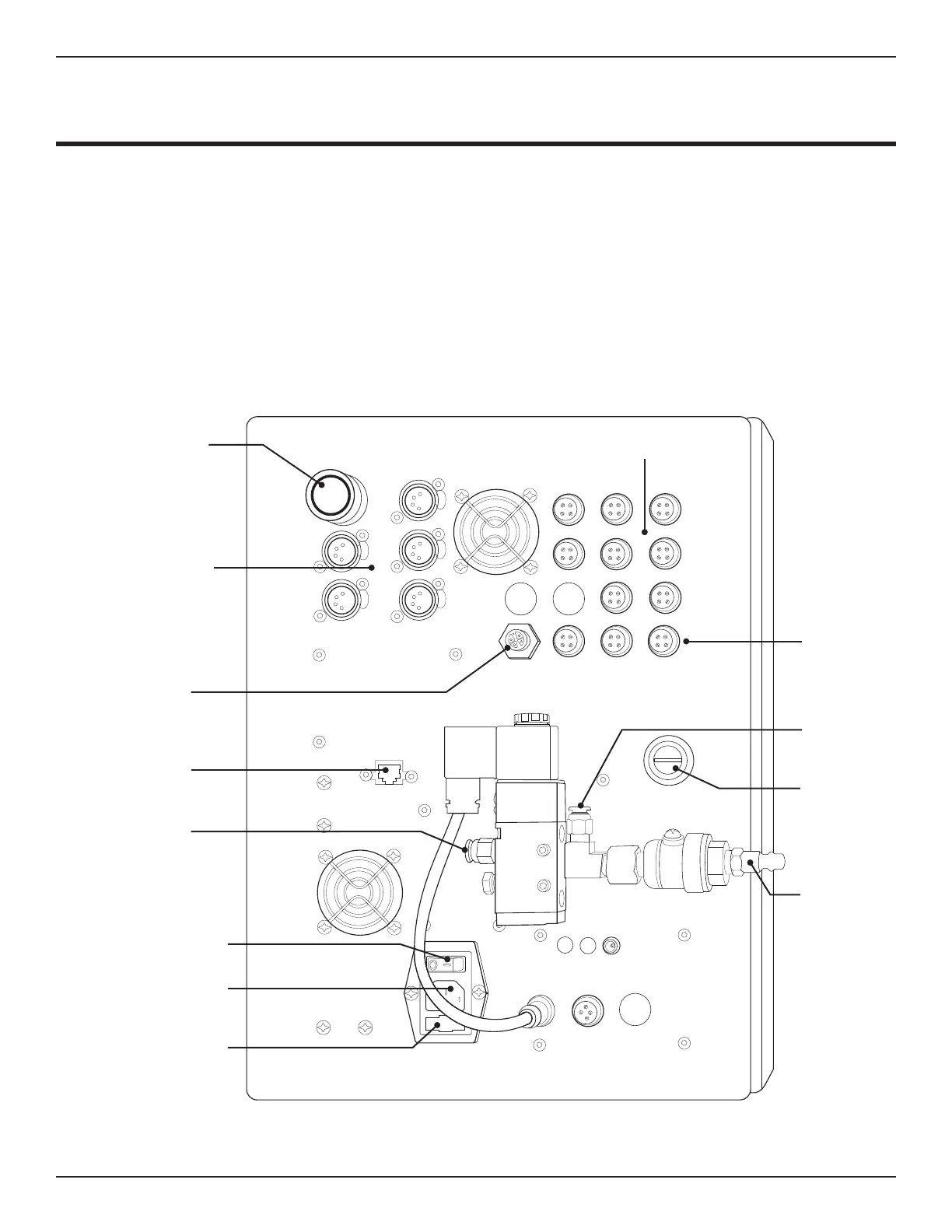

Axis Motor Cable
Connections
Axis Sensor Cable
Connections
C-Axis Cable
Connection
Ethernet Cable
Connection
Engraver Air Line
Connection
Main Power Switch
Main Power Cable
Connection
Main Power Fuses
Air Line
Connection
Lifter Air Line
Connection
Control Box
Latch
E-Stop Cable
Connections
Green Light
Switch
