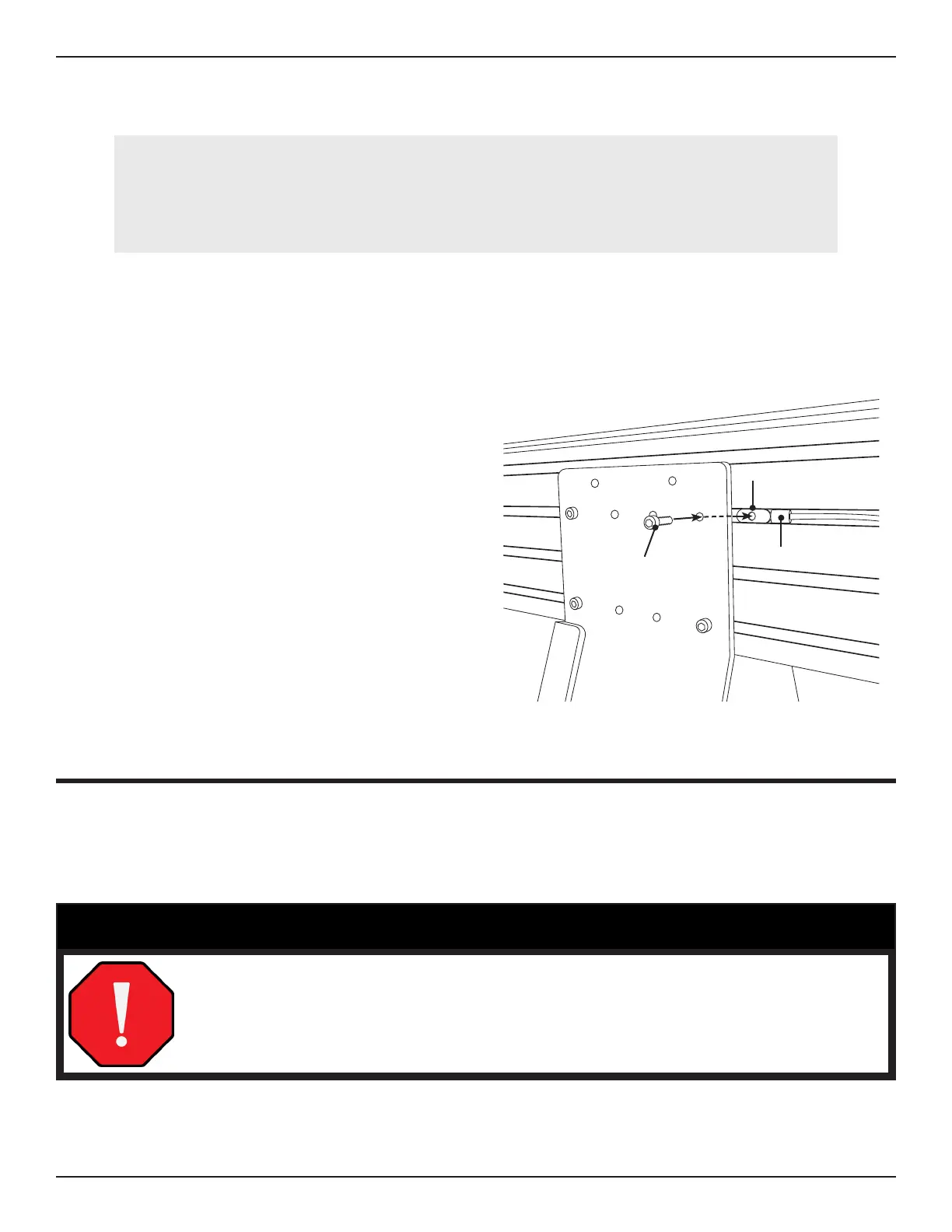

3.6.2 Fastening the Rail Beam to the Support Leg

T-nuts. These can be found in hardware Bag No. 1. Beginning in the No. 5 position, place the
T-nut in the slot on the Rail Beam and, using the magnetic tool provided, slide the T-nut until it
aligns with the mounting hole in the Support
Leg. Insert the Allen head screw and thread
into the T-nut. Repeat this process for each
Allen head screw in the No. 5 and No. 4
positions. Do not tighten these yet.
3.7 Installing the Head
The Head of the machine is extremely heavy. As shipped, the Head of the machine contains all
the working mechanics of the machine as well as the Control Box. Great care should be taken
not to damage any components on the Head of the machine.
! Danger !
The Head of the machine is heavy. If the Head falls or tips over it could cause
severe injury or death.
Tools Needed
• 
• Magnet tool
Hardware Needed
• Hardware Bag No. 1
T-nut
Magnet Tool

head screw
