23Bend-Tech Dragon A400
Assembly Manual
Beginning Assembly
03

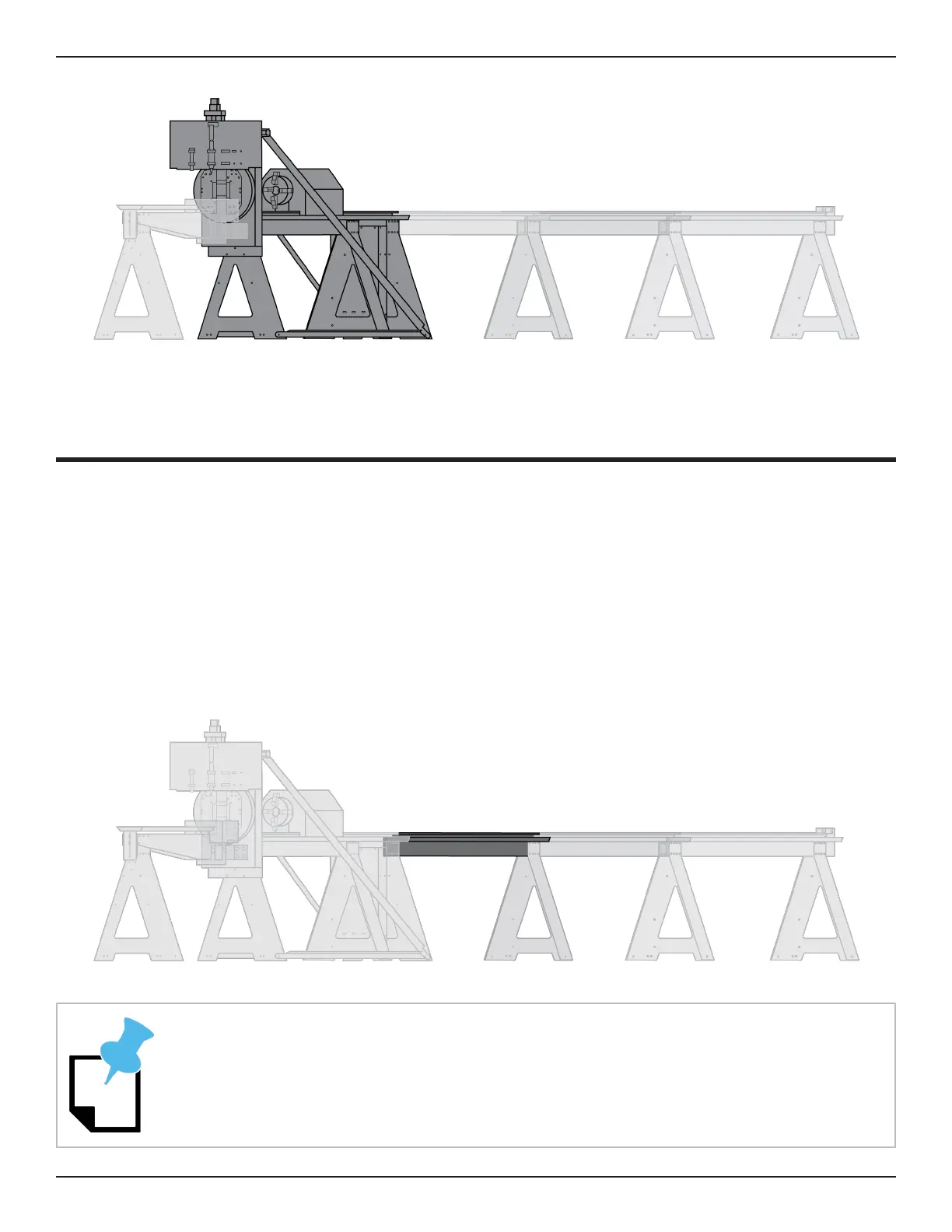

3.8 Complete the Rail Beam
Using the stainless steel locating pins on the Rail Beams, position the No.3 end of the
remaining section of Rail Beam so it can be inserted into the Head section of the Rail Beam.
If necessary, use a rubber mallet or dead blow plastic hammer to seat the Rail Beam sections
together.
Enlist help to position the Rear Tail and No. 4/5 Rail Beam and No. 4 Support Leg assembly so
it can be connected to the No. 4 end of the 3/4 Rail Beam. This may require lifting the Tail and
No. 4/5 Rail Beam as an assembly. Avoid sliding the assembled Rail Beam sections as this
could damage the Swivel Levelers.
Sliding the machine on the oor could damage the Swivel Levelers.
43
43 5
