45Bend-Tech Dragon A400
Assembly Manual
Torch
08
The Operator will perform the Torch Mount procedure to set Torch operating height as
outlined in the Start-Up and Training Manual.
With the Powermax45 unit, ensure the Torch disable switch is in the ready to re
position.

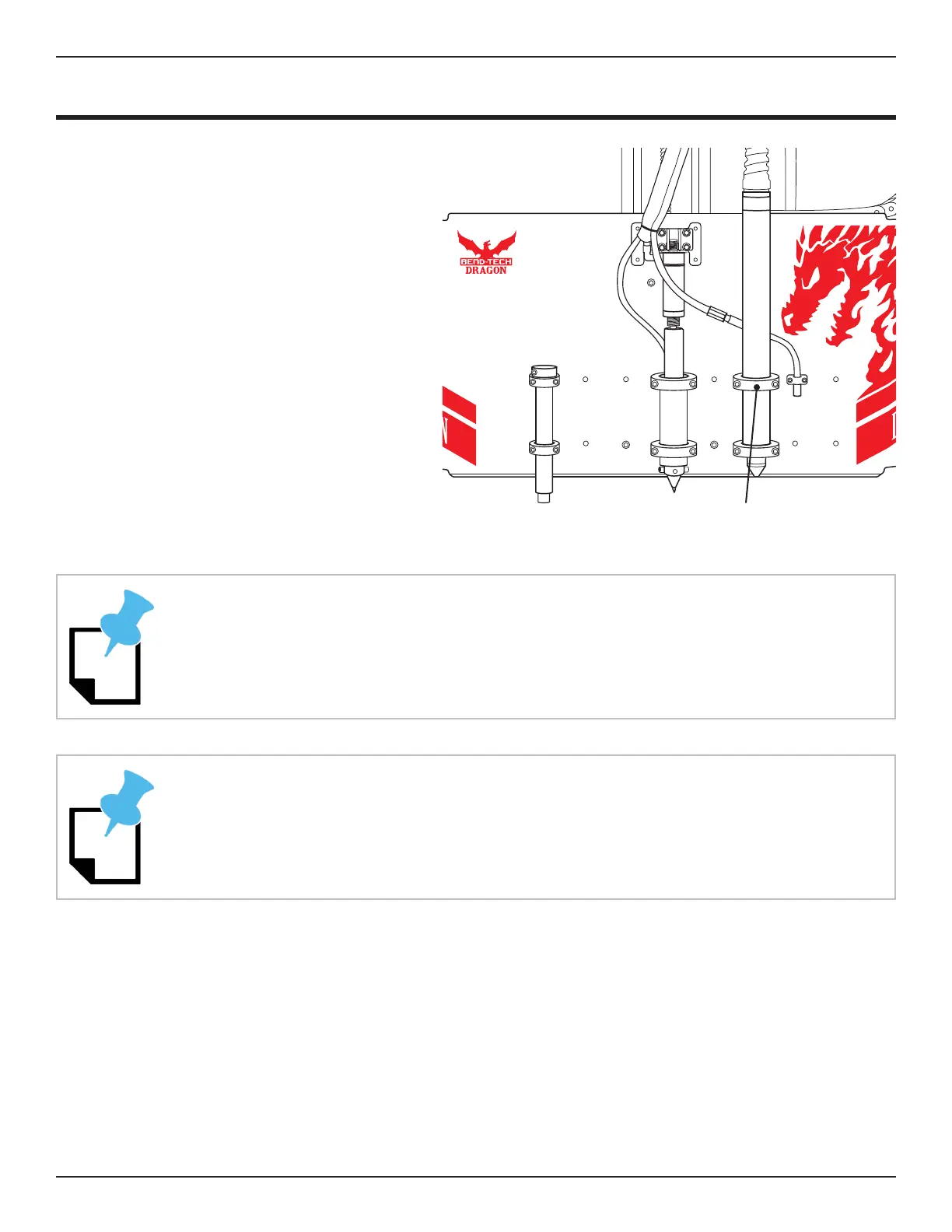

8.3 Install the Torch Wand
The Torch is mounted to the Toolhead
using two mounting collars. For initial
install, the Torch should only be
mounted in the top collar.
Loosen the adjustment screws in
wrench. Slide the Torch into the collar
from above, with the tip of the Torch
pointing down.
When the ceramic body of the Torch
is nearly touching the bottom collar,
hold the Torch in place and tighten the
top collar securely by hand. Do not
install the Torch in the bottom collar at
this time.
Only secure the Torch
in the top collar
