43Bend-Tech Dragon A400
Assembly Manual
Torch
08
8.2 Preparing the Torch Wand
8.2.1 Brass Gear Rack Hypertherm Powermax45

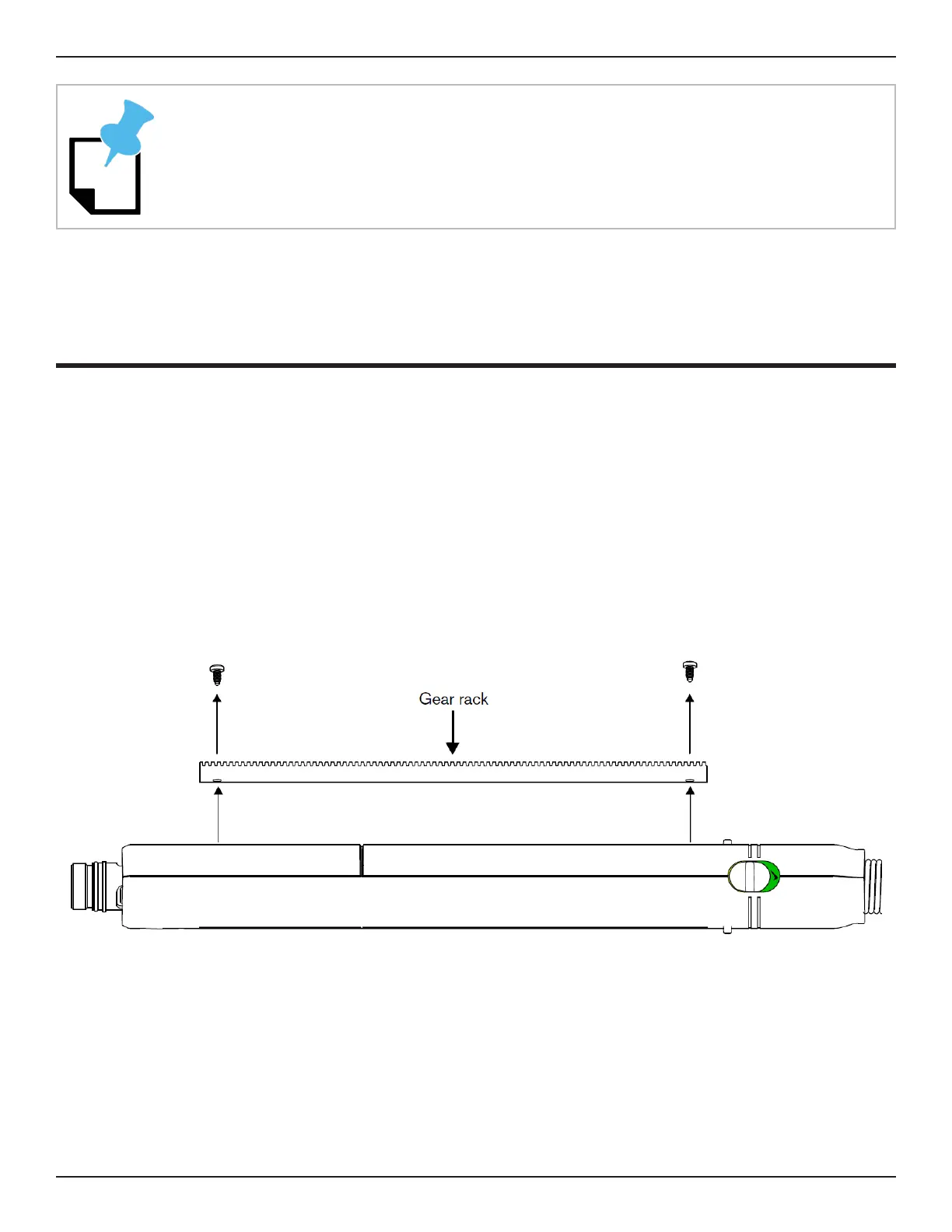

Hypertherm supplies the Powermax45 Torch Wand equipped with a brass gear rack. The
Customer will need to remove this gear rack in order to mount the Torch on the Toolhead. On
the Hypertherm Powermax45 the gear rack is secured to the wand using two Phillips head
screws. Remove these screws. Remove the gear rack. The Torch is now ready to be mounted
on the Toolhead.
It is recommended that the air supply to the Hypertherm be equipped with a water and
particulate lter, an oil lter and an oil vapor lter.
