42 Bend-Tech Dragon A400
Assembly Manual
Torch
08
8.1.2 Torch Lead
When mounting the Torch wand on
the Toolhead, it is up to the Customer
to determine best routing for the

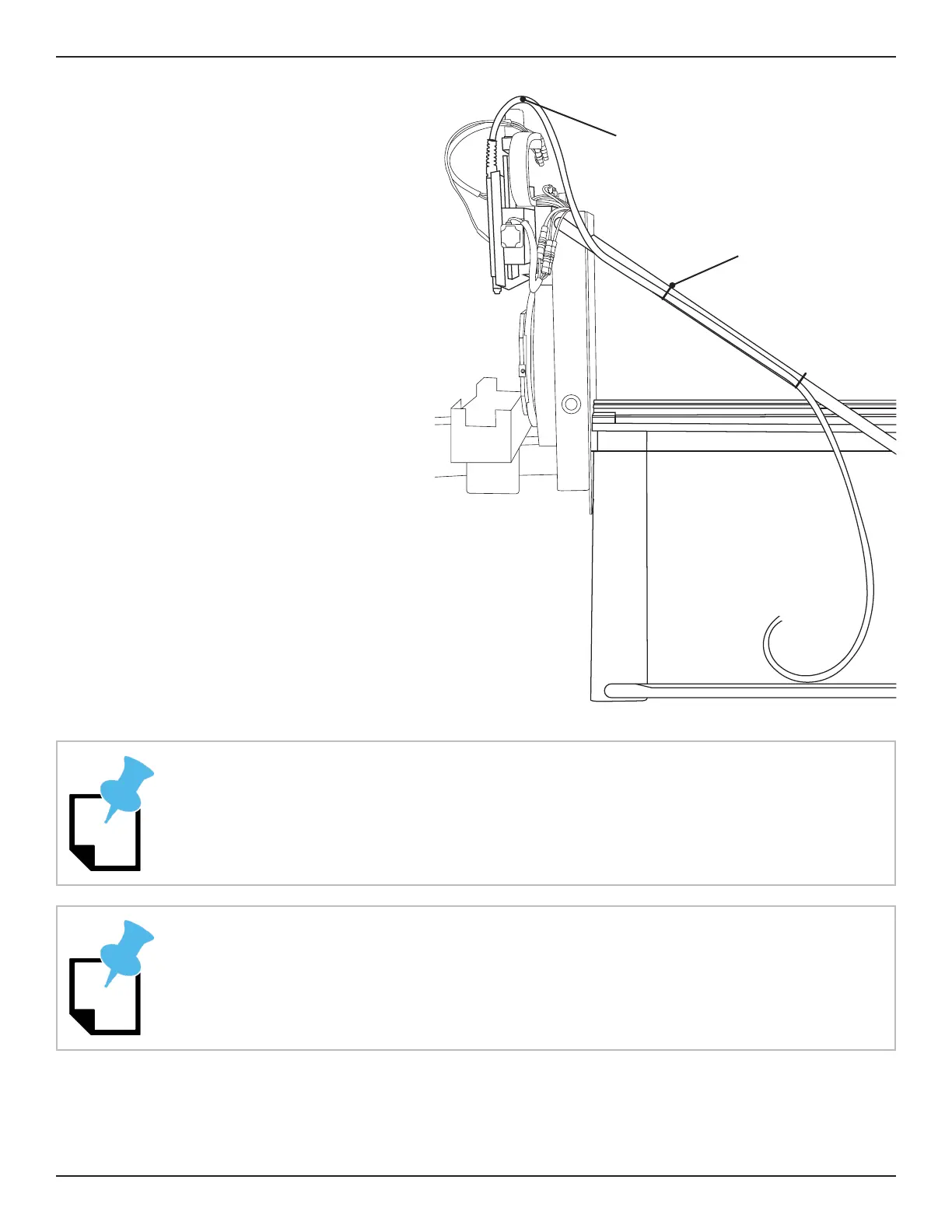

Torch lead. Refer to diagram for
recommended routing.
Bend-Tech recommends securing
the Torch lead to the Head Support
Strut on the left side of the machine.
Ensure the Torch cable is clear of
other cables and moving parts.
The Torch lead transmits high
󰀨
the performance of other electrical
components if cables for those
components are routed in close
proximity to the Torch cable. This
can create connectivity issues and
possible machine malfunction.
The Hypertherm unit requires at least 85 psi at its air connection. Consult the
Hypertherm Operator Manual for complete specications.
The Customer should ensure the Torch lead is secured so it is clear of the cables at
the top of the Toolhead. It is recommended that the Torch lead be secured so it loops
up above the components at the top of the Toolhead.
Ensure the Torch Lead has plenty
of clearance above the components
at the top of the Toolhead.
The Torch Lead should be
secured clear of other cables
and moving parts.
