48 Bend-Tech Dragon A400
Assembly Manual
Leveling and Alignment
09

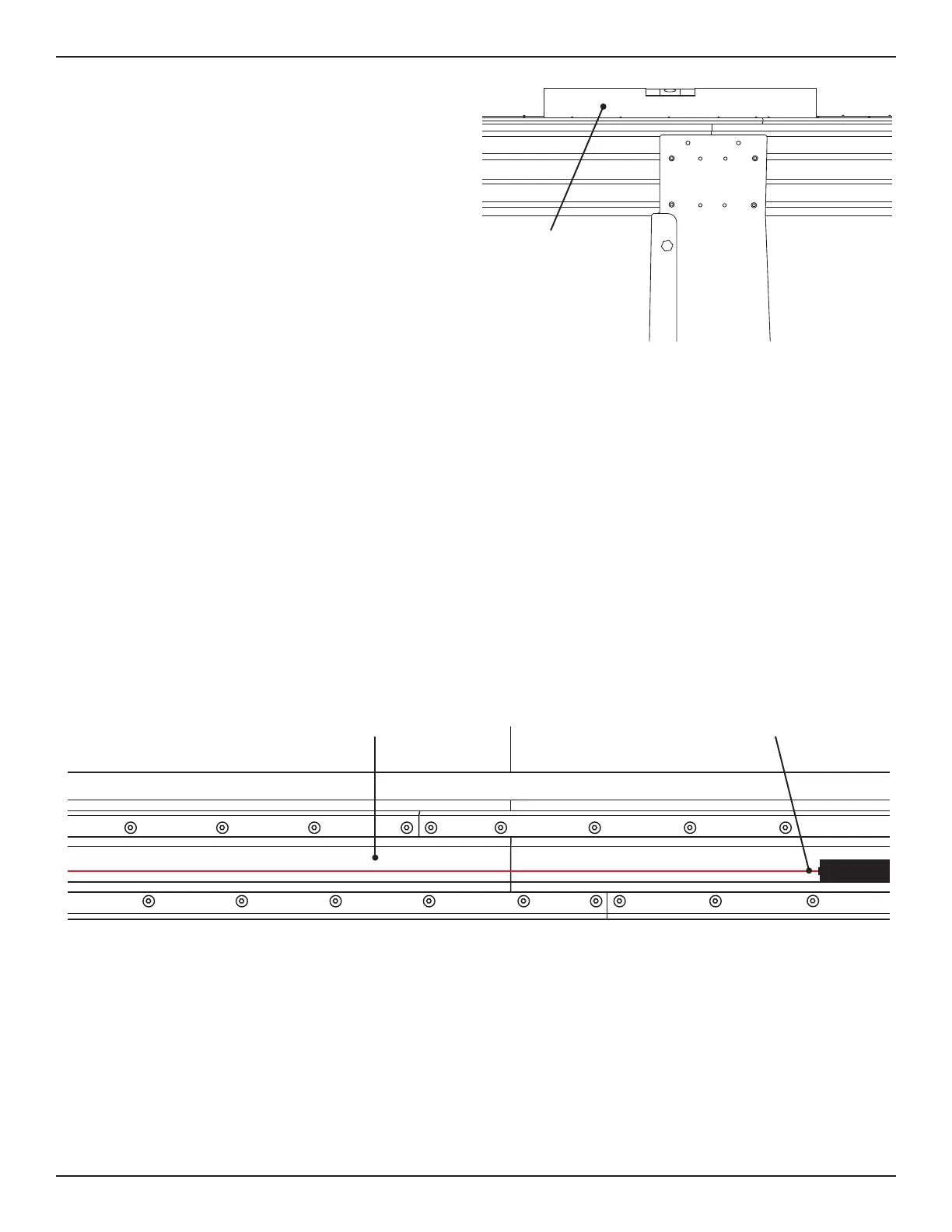

9.1.1 Checking Rail Level
Each Rail section should be checked for
level side-to-side and lengthwise using
a bubble level. If the Rail needs to be
adjusted the Technician can use the Swivel
Levelers provided with the Dragon A400.
The Swivel Levelers should be installed
upon assembly.
9.1.2 Adjusting Swivel Levelers
To adjust the Swivel Levelers, ensure the
󰀨

from above, turn clockwise to raise the leg, turn counterclockwise to lower the leg.
9.1.2 Checking Rail Straightness
The Rail should be checked for straightness along its length. The most accurate way to check
for Rail straightness is by using a laser tool. However, a taut string will also work to check
straightness.
If the Rail is not straight the technician will need to straighten the Rail by aligning each
individual Rail section beginning at the front of the machine, using the front Rail section as the
benchmark.
Laser or Taut String
Top of Rail
Level
