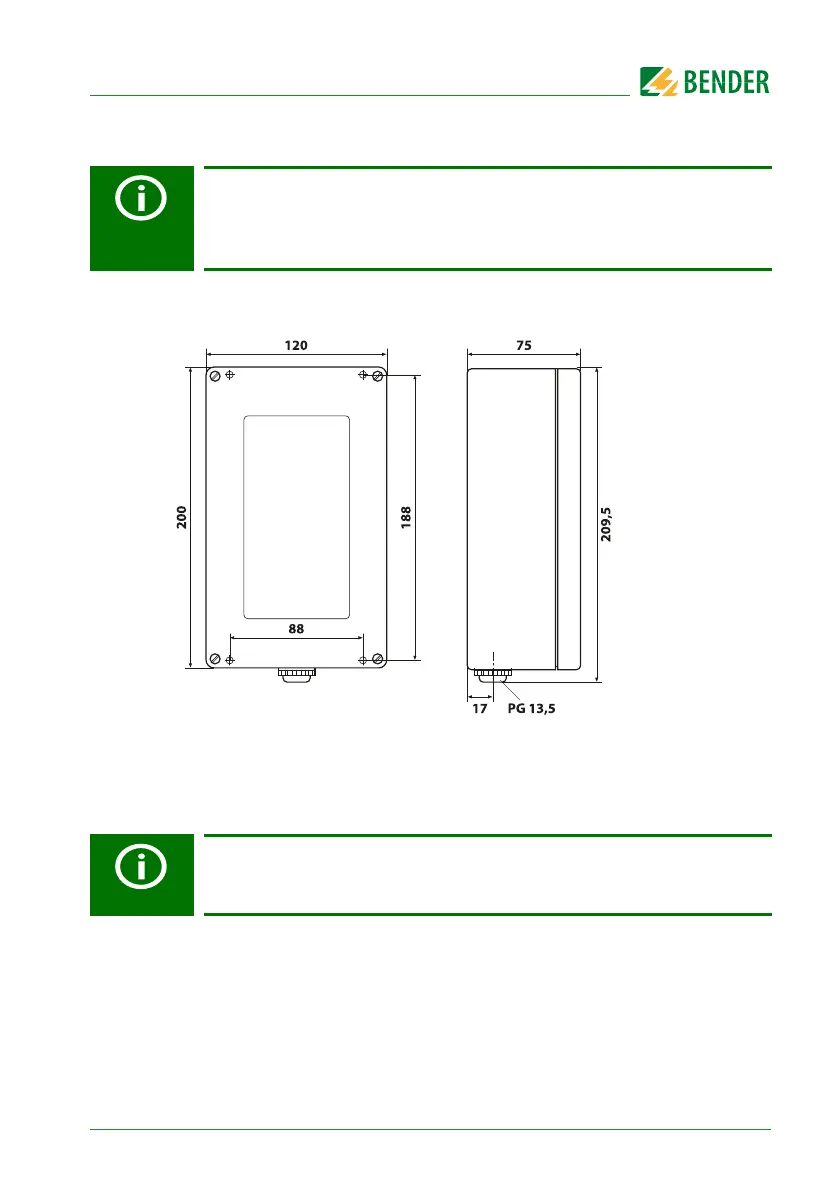

4.2.3 Dimension diagram surface-mounting enclosure
Fig. 4.2: MK2430 in surface-mounting enclosure
4.2.3.1 Installation of the surface-mounting enclosure
Use the empty enclosure as a template to mark the drilling holes.
Maximum diameter of the screws:
Thread of screw: 3 mm, bolt head: 7 mm.
Screw mounting
The MK2430S-11, MK2430S-12 and MK2430H-12 versions are designed for
screw mounting. MK2430H-12 is mounted horizontally.
When screw mounting, make sure that the front panel does not bend!
A smooth and even surface is a precondition for installation. Only the fas-
tening screws specified below should be used. Failure to observe this can
result in deformation or damage to the enclosure.
