3.3 Function
3.3.1 Display/operating elements

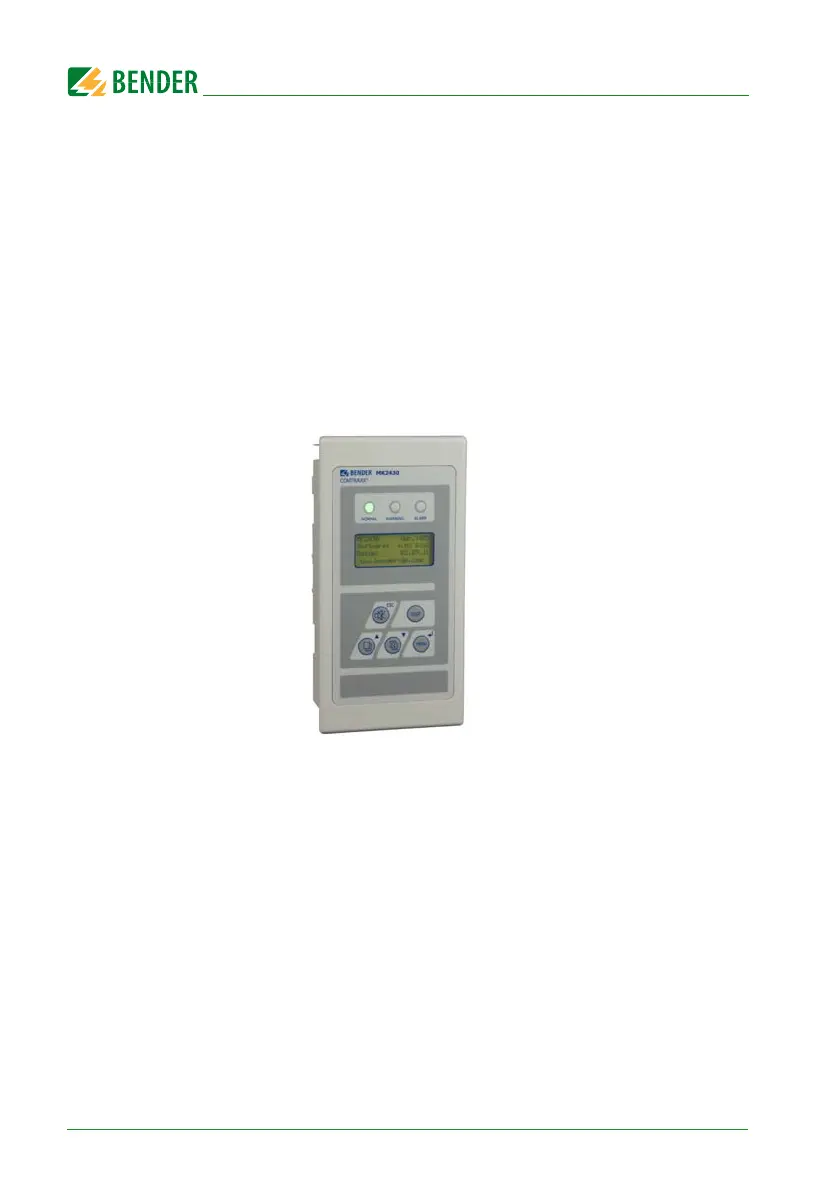

The backlit display features four lines of 20 characters each. It supplies medical and
technical personnel with clear and unambiguous information to help them make
decisions. Every alarm message comprises three lines which appear spontaneously and
three additional lines which can be displayed at the touch of a button. The fourth line
contains status information (i.e. number of messages, test procedures, menu infor-
mation). Three LEDs are located above the text display. They indicate:
Normal operation (green), warnings (yellow) or alarms (red).
Five buttons are available for acknowledging or muting alarms and warnings, testing
assigned devices and for the menu system.
3.3.2 Programmable messages
Standard message texts can be activated by enabling alarm addresses. These texts are
available in 20 languages. Alarm addresses can be enabled via the device menu system
(without PC). Individual message texts, each comprising 6 lines of 20 characters can be
programmed with the TMK-SET PC software.
An LED (yellow or red) and an acoustic signal can be assigned to each message. For this
purpose, the PC is connected to the USB interface or BMS bus (RS-485).
3.3.3 History memory
Warnings and alarms are written to the history memory. 250 text messages can be
stored. Each subsequent message overwrites the oldest message in the history memory
(message 251 overwrites message 1 etc.). The history memory can be read via the
operating menu or the TMK-HISTORY PC software.
