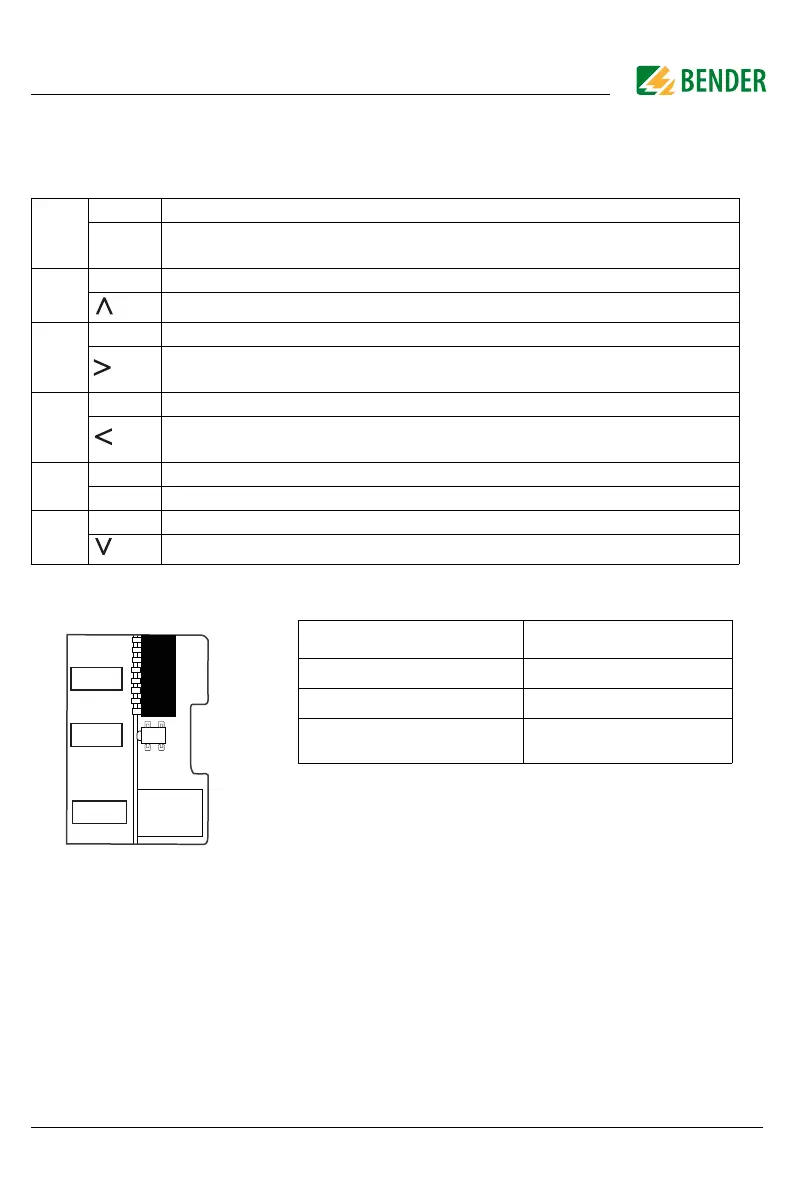

4.3.2 Device buttons
Adjust the device settings in the respective menu using the device buttons. Depending on the
menu entry, one of the options displayed below is assigned to the buttons.
4.3.3 Operating elements in the service lid
7
MENU Opens the device menu.
ESC
Cancels the current process or
navigates one step back in the device menu.
8
EDS Opens the EDS menu (isoxx1685DP only)
Navigates up in a list or increases a value.
9
TEST Starts the device self test.
Navigates forwards (e.g. to the next setting step) or
selects a parameter.
10
RESET Resets alarms.
Navigates backwards (e.g. to the previous setting step) or
selects a parameter.
11
INFO Shows information.
OK Confirms an action or a selection.
12
DATA Indicates data and values.
Navigates down in a list or reduces a value.
Operating elements Function
DIP switch (SS8103) no function
Button (ST6101) Alarm reset
Memory card (SD card) no function
µSDCard
SS8103
1
2
3
4
5
6
7
8
A4
A3
A2
A1
A0
ST6101
