Commissioning
35
isoxx1685Dx-x25_D00272_07_M_XXEN/09.2022
6.5 Commissioning EDS (isoxx1685DP only)
Proceed as follows to put into operation an EDS after commissioning the ISOMETER®:
1. Set the mode for the insulation fault location to manual, automatic or 1 cycle. For a
description of the different modes, refer to
"Mode" on page 50.
2. Test if the maximum locating current matches the EDS and adjust if necessary (refer to
6.3.7 "Setting the EDS current (isoxx1685DP only)" on page 33).
Menu path: Menu/EDS/General/Current
In addition to this chapter, the commissioning of the ISOMETER® in combination with an EDS
is described in the chapter 6.2 "Commissioning flow chart with insulation fault location" on
page 30.

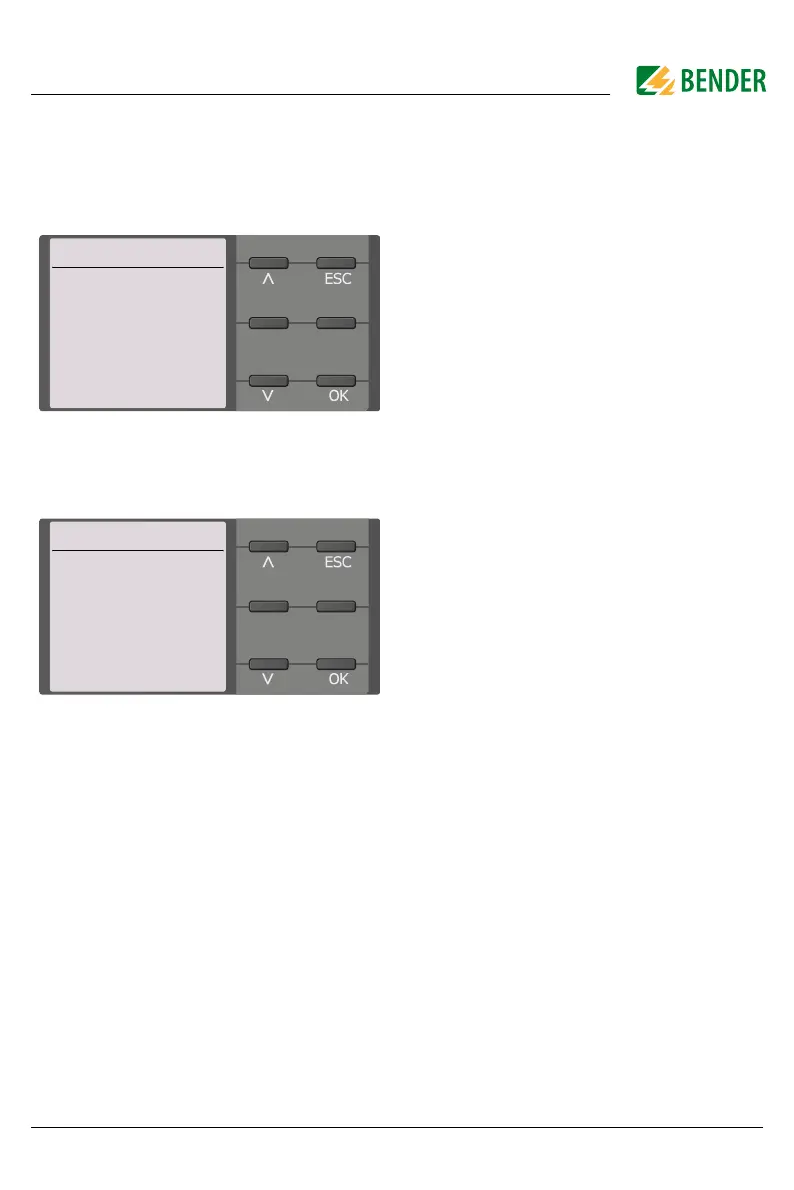

Mode
x.x.x
o Manual
• Auto
o 1 cycle
Current
x.x.x
o 1mA
• 2.5mA
o 5mA
o10mA
o25mA
