Display
39
isoxx1685Dx-x25_D00272_07_M_XXEN/09.2022

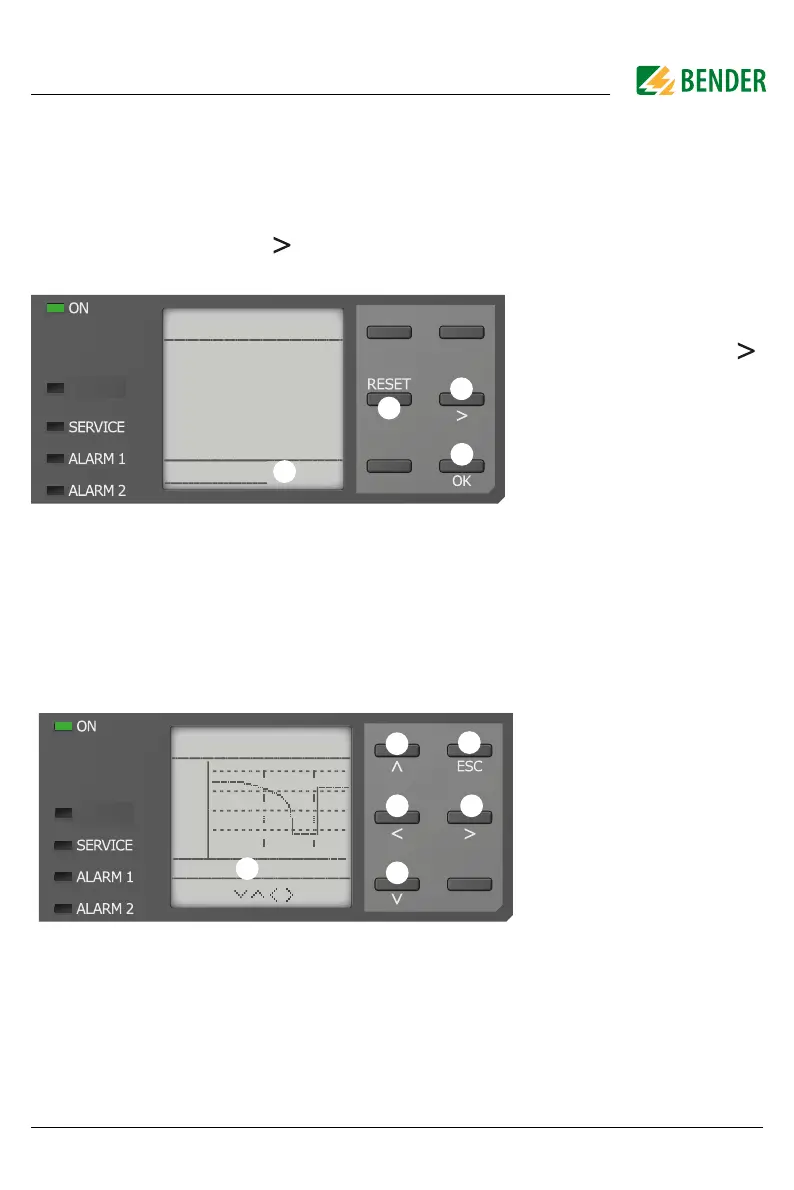

7.4 Acknowledging a fault message
In order to acknowledge the fault message and return to the ISOMETER®'s standard display, all
faults must be acknowledged by means of the "RESET" button.
This means that fault messages can only be reset when the cause of the fault has been elimi-
nated.
Press the "RESET" button, then and "OK" to clear the fault memory. The ISOMETER® returns
to the standard display.
7.5 Data-isoGraph
The isoGraph represents the chronological sequence of the insulation resistance over time.
This graphical representation can be displayed over the following time periods: hour, day,
week, month and year.
The measured values for individual representations are stored in a separate memory. Up to
100 measured values are available to represent each graph. and the resolution of each graph
is determined by these values.
4
3
2
1
Keypad
1 Press „RESET“-button
2 Select RESET by pressing
3 Press the "OK" button to
confirm the deletion
Display
4 Functions
Cancel
Delete present
messages?
All messages are
stored in the
history.
PGH ON
1/4
,001
,010
,10 0
1,0
MΩ
16:26 16:52
Data-isoGraph
6
5
4
3
2
1
Keypad
1 Change measured value
(jump forward one value)
2 Exit view
3 Change scaling (zoom in)
4 Change scaling (zoom out)
5 Change measured value
(jump back one value)
Display
6 Present time scaling
PGH ON
