Commissioning
32
isoxx1685Dx-x25_D00272_07_M_XXEN/09.2022
6.3.3 Setting the profile
In order to optimally adapt the insulation monitoring device to the system to be monitored,
select a profile that suits your system. For an overview of the profiles, refer to "Device profiles"
on page 75. The Power circuits profile is suitable for most of the IT systems.
6.3.4 Setting response value R
an1
for alarm 1
Set the prewarning response value here.
1
The response value range changes depending on the selected profile. See
"Device profiles" on page 75.

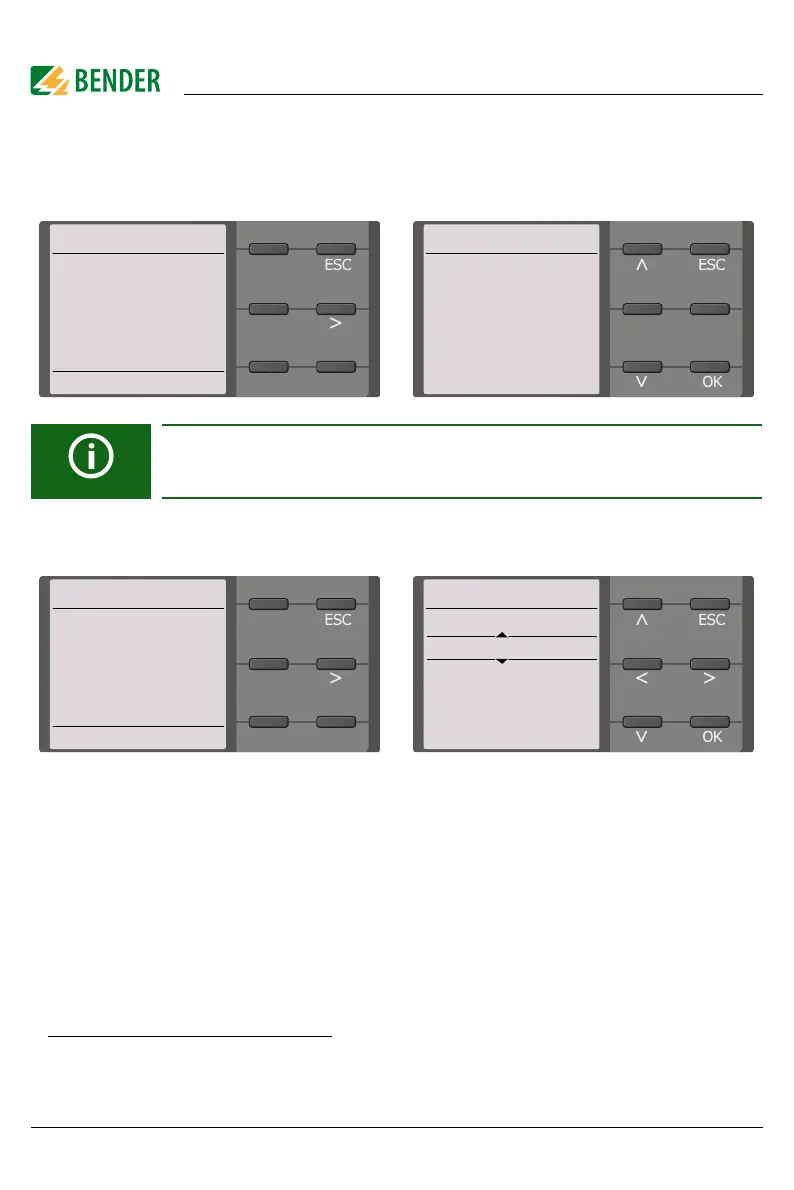

1. The response values shown in the screenshots represent the default settings of an
iso1685DP device. The values differ depending on the device variant.
Profiles
x.x.x
• Power circuits
o Control
circuits
o High
capacitance
o Inverter>10 Hz
Commissioning
x.x
Please select
a profile
according to your
application.
x/xx
Alarm 1
x.x.x
40 k
Ω
Min. 1 k
Ω
Max. 10 M
Ω
Commissioning
x.x
Please set
the response value
R(an1) for
Alarm 1.
x/xx
