3
Installation and Settings
23 / 64
Figure 36 Router-AP Mode
3.4.5
Select Router-Station Mode
Router-Station
：
Under
Router
-Client
Mode,
WLAN
works
und
er
Client
Mode
and
connects with other AP, using WLAN as WAN
port to transmit the data.

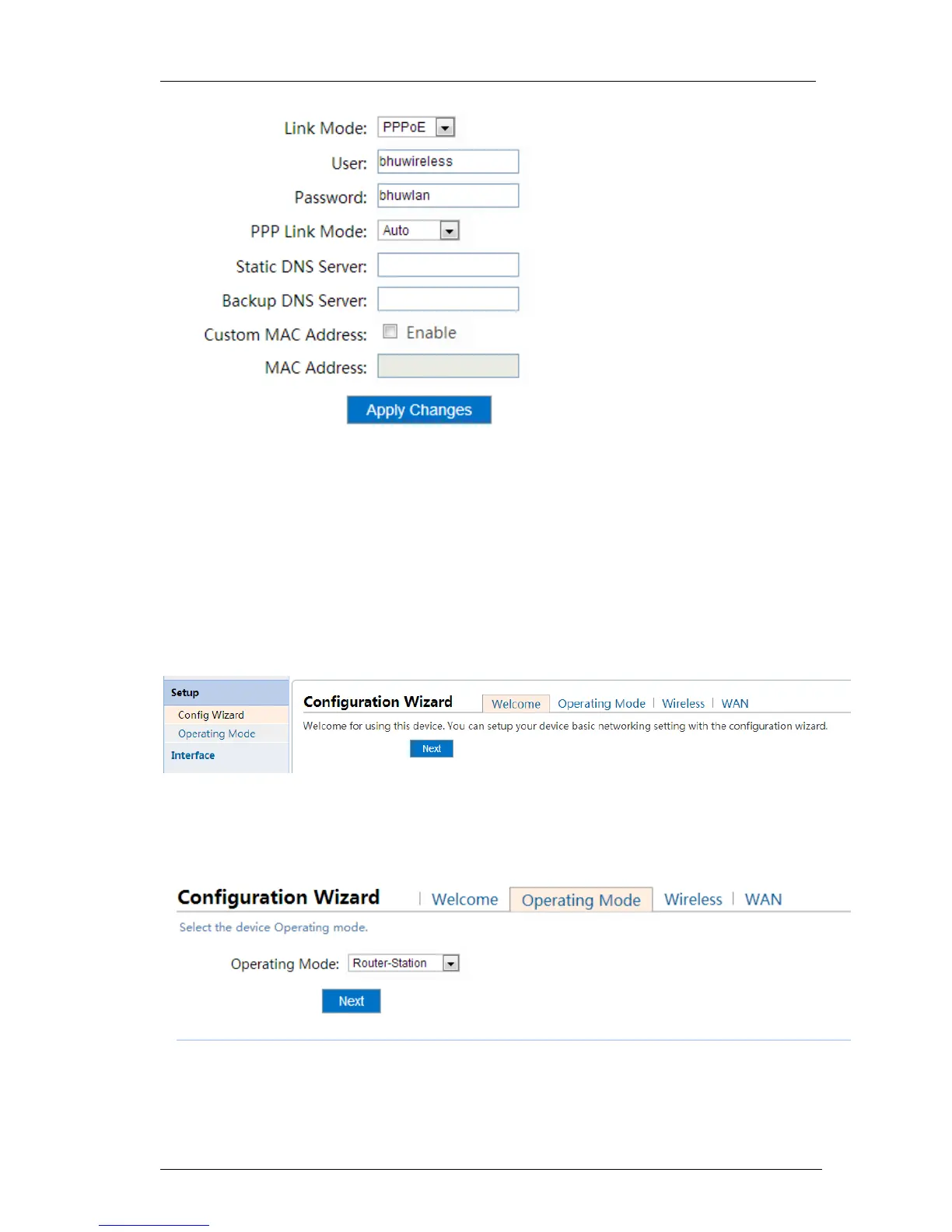

Router-Station work mode basic configuration, as shown
in the figure below
：
Figure 37 Router-Station Mode
Click “
Next
” to select work mode, as shown in the figure below:
Figure 38 Router-Station Mode
32
34
