5 Equipment Check and Troubleshooting
54 / 64

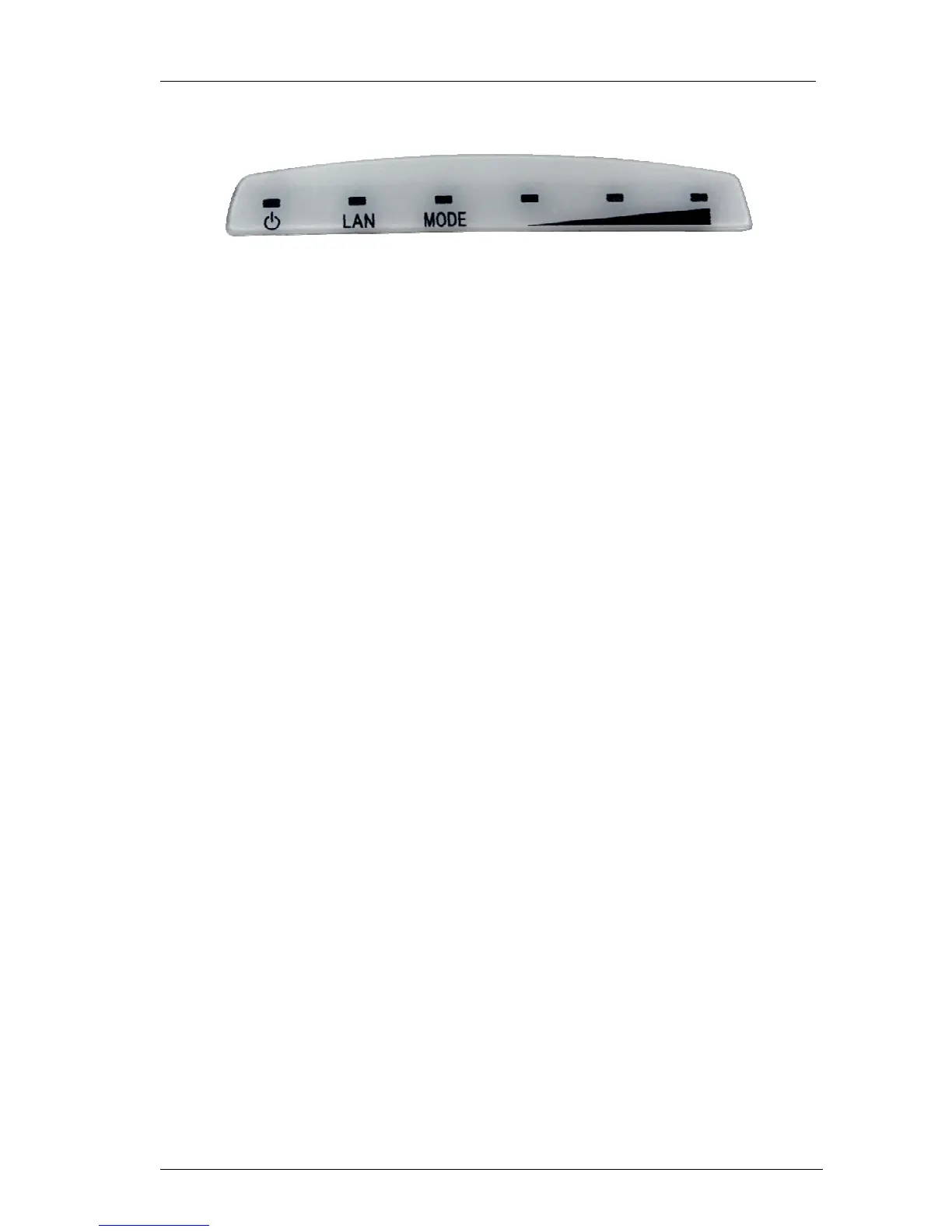

Figure 85 Indicator Panel
The thi rd indicator counted from the left to right is light, and the last t hree lamps
are light st ands for AP signal intensity, a nd t he n umbers o f t he l ast th ree l amps
which are light stands for the int ensity of t he signal, at this time, it is Sta tion or
Repeater mode, if the third lamp counted fr om the left to the rig ht is not lightening,
it is AP mode.
After connecting the power, see if BXM2/5 work indicator is normal, normal status is
that WLAN indicator is blinking, PWR indicator keeps light.
