Installation and Settings
47 / 64

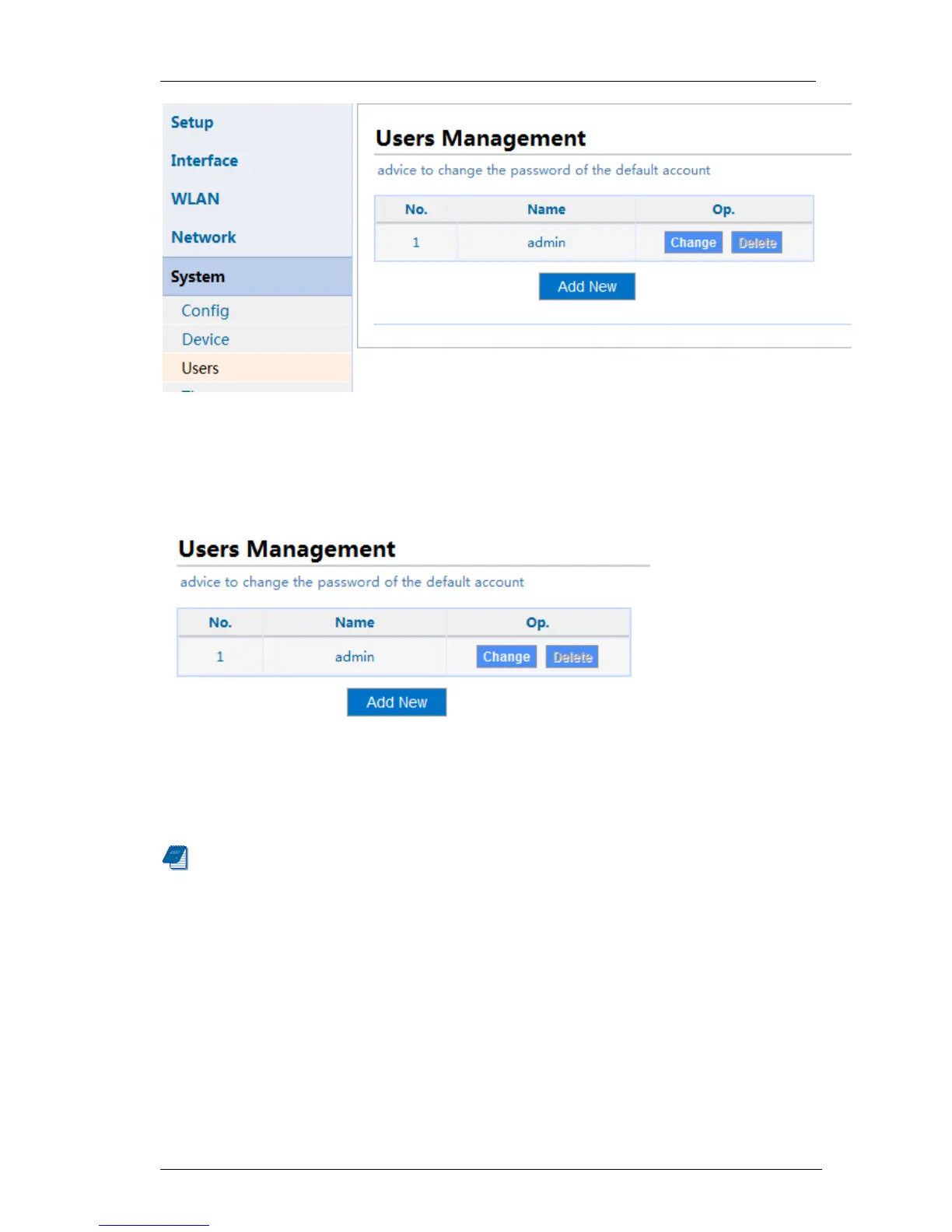

Figure 78 User Management
Open “
System
→
Users
→
Add New
”.
Figure 79 New User
New-built
：
Add
new
user,
it is
b
etter
to us
e
the
combination
of
number
and
letter,
to ensure user safe.
Note
：
The default
admin account of
system
is not allowed
to
del
ete, but you can
modify the password of the account.
56
58
