Installation and Settings
39 / 64
Select PPPoE Connection Mode:
Input related user password.
PPP connection mode
：
Auto-link
m
ode,
Demand-when
there
is
a
data
requirement, try to link, Once-manual connection.

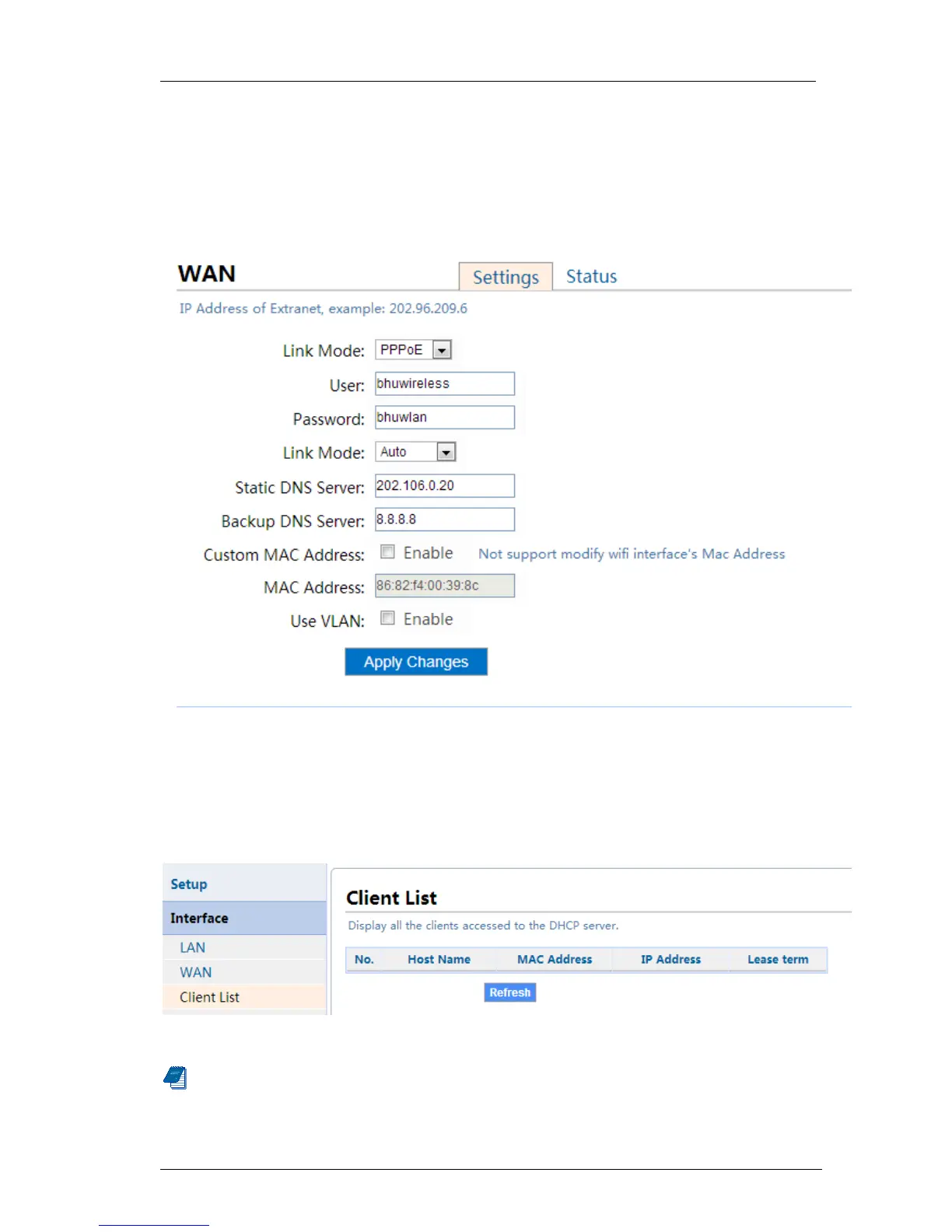

Select Connection Mode, as shown in the figure below:
Figure 67 WLAN Settings Example 2
3.6.3 Client
List
Open
“Interface
→
Client List”
.
Figure 68 Client List
Note
：
Client List only appears in Router-Station mode, it hides in other modes.
48
