3 Installation and Settings
40 / 64
3.6.4 Router Settings
Open “ Network→Routes”, as shown in the figure below：

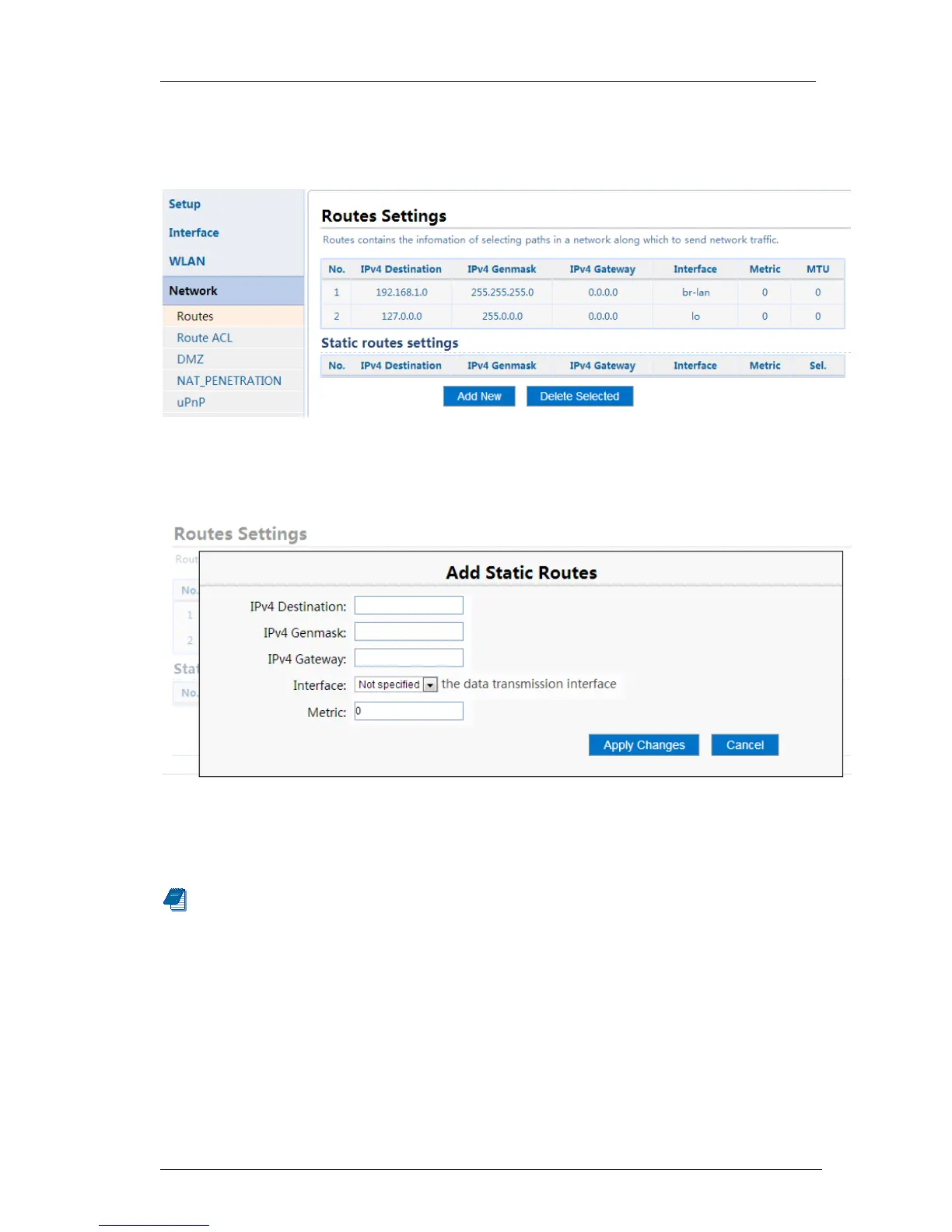

Figure 69 Routes Settings
Static routes：Static router is manually configured by administrator. The
administrator must understand the topology map of the router, and when network
topology is changed, the administrator need to revise the router path manually.
Figure 70 Add Static Router Settings
Add static routes settings：Adding a new router, the IP address of user appointed
destination, subnet mask, default gateway (the address of next hop), and the
priority and network equipment interface of data package sending.
Note ： When the configured router does not apply with the current netwo rk
topology structure, the static router cannot be added.
Open “Network→Route ACL control” , according to IP address regulation control,
as shown in the figurebelow :
