“ICON2000”
instruction and operating manual
Section 618/2 chapt. L
Section 618/2
• Logger mode
• Sampling time
• Memory mode
• Date
• Time
Data logger modes:
OFF: the data logger is not active.
RECORDER mode: the ICON2000 measures and memorises the following 3 data:
• main voltage supply (V)
• motor temperature (°C)
• temperature inside the compartment of electronics (°C)
• T-RECORDER mode: the ICON2000 measures and memorises the following 3 data:
• Torque in OP / CL
• Motor temperature (°C)
• Voltage
In RECORDER and T-RECORDER the SAMPLING TIME fixes the time interval among two
sets of measures. Up to 256 sets of measures (equivalent to 256x4 samples) can be
memorised. The sampling time can be configured from 1 to 3600 secs. As the memory is
full, the recorder stops recording or overwrites the previous data according to the selected
MEMORY MODE (“stop when full” or “continuous”). If “continuous” was selected, as a new
set of measures is achieved the oldest one is cancelled and the new one becomes the
latest. Up to 10000 cycles of full memory overwriting are done, then the recorder stops. In
T-RECORDER mode, the recording operation is also stopped in case of OVER-TORQUE
ALARM, in opening or in closing. This additional feature allows to maintain in the memory
the last 256 samples and to see the trend of torque, motor temperature and main voltage
before the alarm. A new start of T-RECORDER clears the data stored in the memory. By a
PDA or PC the recorded data can be viewed by a graph where time is on the X axis and the
measured data on the Y axis.

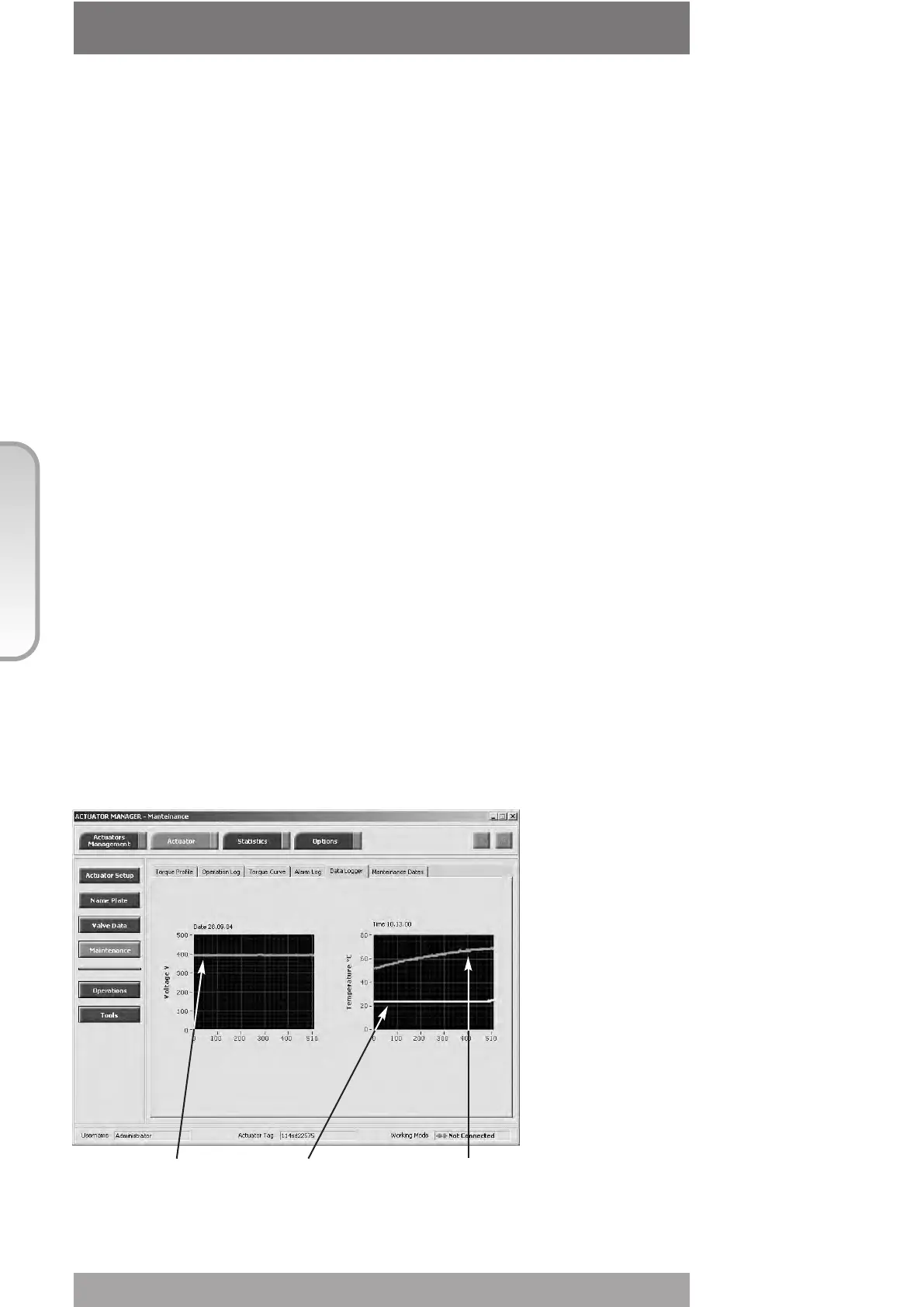

The figure below shows a graph with sampling time 2 secs in RECORDER mode.
The figure below shows a graph with sampling time 1 sec in T-RECORDER mode after a
recording stop for OVER-TORQUE alarm.
Main supply voltage Temperature of electronics Motor temperature
