Clinician's Guide

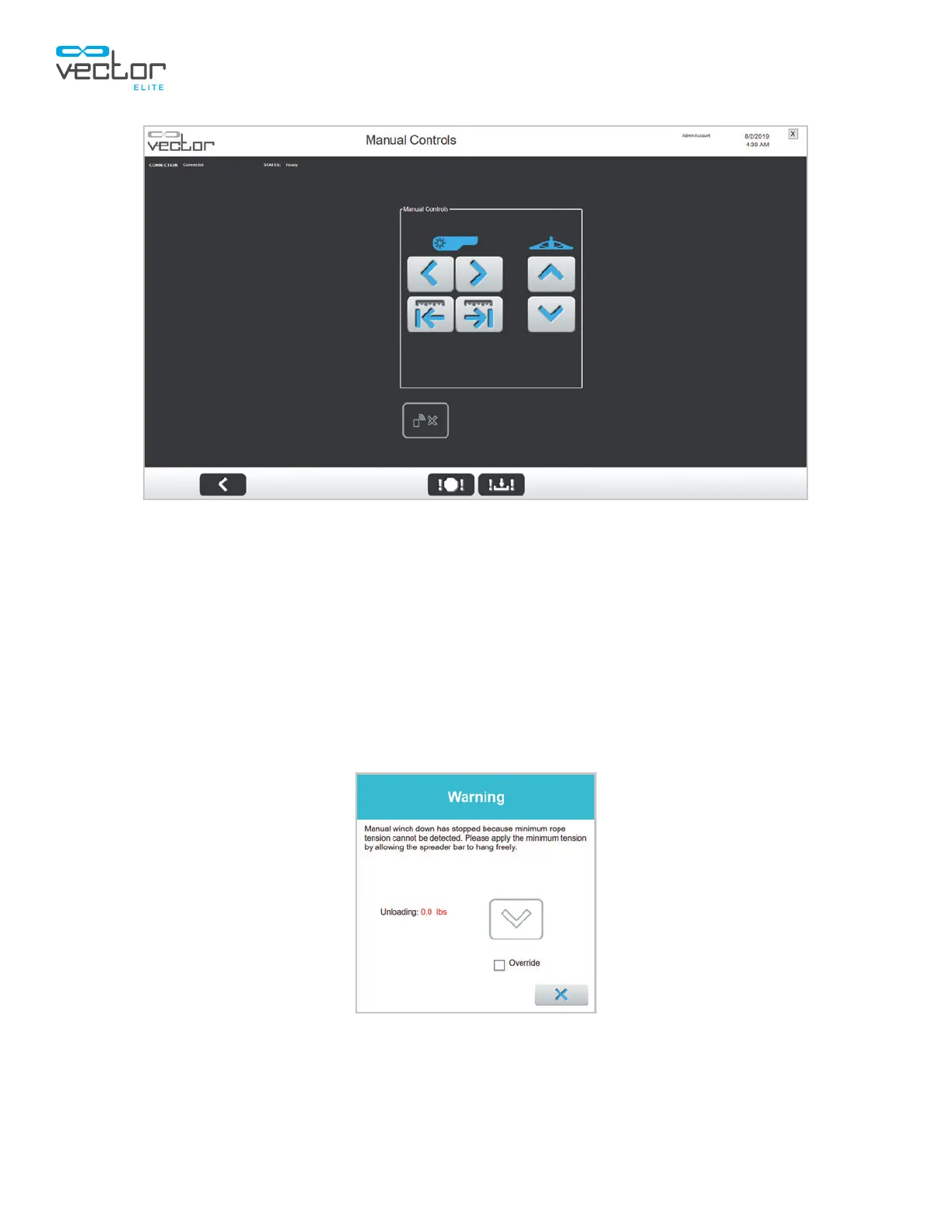

Figure 8-2: Manual Controls Menu
A minimum tension of 0.5 lbs. (0.23 kgs.) must be applied to the rope to manually winch down. This is
achieved by allowing the spreader bar to hang freely. This minimum tension prevents damage to trolley
hardware pieces including the winch drum, finger guard and rope. If at any time a manual winch down is
initiated, or in process, and the minimum tension cannot be detected by the system a warning message
window will be displayed. See Figure 8-3.
To continue winching down without the minimum tension of 0.5 lbs. (0.23 kgs.) applied, check the Override
box. This enables the winch down button on the popup screen. Once complete, press the X button to
continue using the system normally.
Figure 8-3: Warning Message Window - Minimum Rope Tension
