CB-110-4 21
FQW+110-4 .. FRW-302-4:
• are equipped with an integrated EMC filter for cat-
egory C3. To meet category C2 requirements, an ex-
ternal EMC filter is required at the input of the fre-
quency inverter:
FQW+110-4 .. FRW-240-4:
part no. 34795502,
designation FN 3359-250-28,
FRW+302-4: part no. 4795503,
designation FN 3359-320-99.
WARNING
Without the use of an external EMC filter, high-
frequency interferences may occur in the
voltage supply system!
This drive constellation is not intended for use in
a public low voltage network supplying residen-
tial environments.
FI size IP rating Maximum motor cable
length
C1① C2 C3
M, N, O, IP20/IP66 1 m 5 m 25 m
P IP20/IP55 1 m 5 m 25 m
FI size IP rating Maximum motor cable
length
C1① C2 C3
Q IP20 - 5 m 25 m
Q, R IP55 - 5 m② 25 m
S IP20/IP55 - 5 m 25 m
① Conformity is only achieved with category C1 Con-
ducted emissions.
② with external filter
5.9.1 Internal EMC Filter and Varistors –
Disconnection Procedure

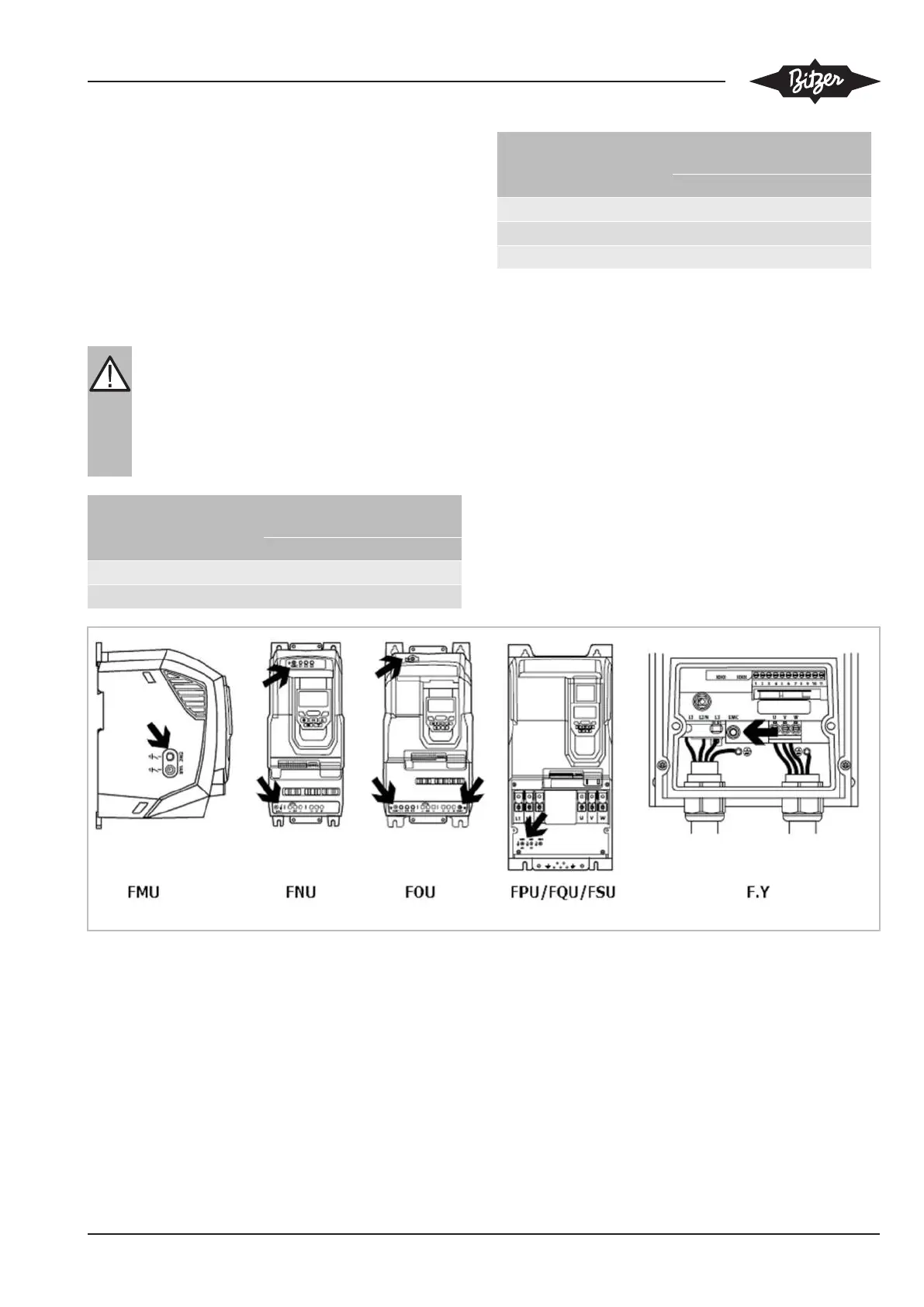

All IP20 and IP66 VARIPACK models provide a simple
method to disconnect the internal EMC filter and surge
protection varistors by fully removing the screws shown
below. This should only be carried out where neces-
sary, for example in cases such as IT or ungrounded
supplies, where the phase to ground voltage can ex-
ceed the phase to phase voltage. The EMC filter dis-
connect screw is labelled “EMC“. The surge protection
varistors disconnect screw is clearly labelled “VAR”.
