CB-110-4 9

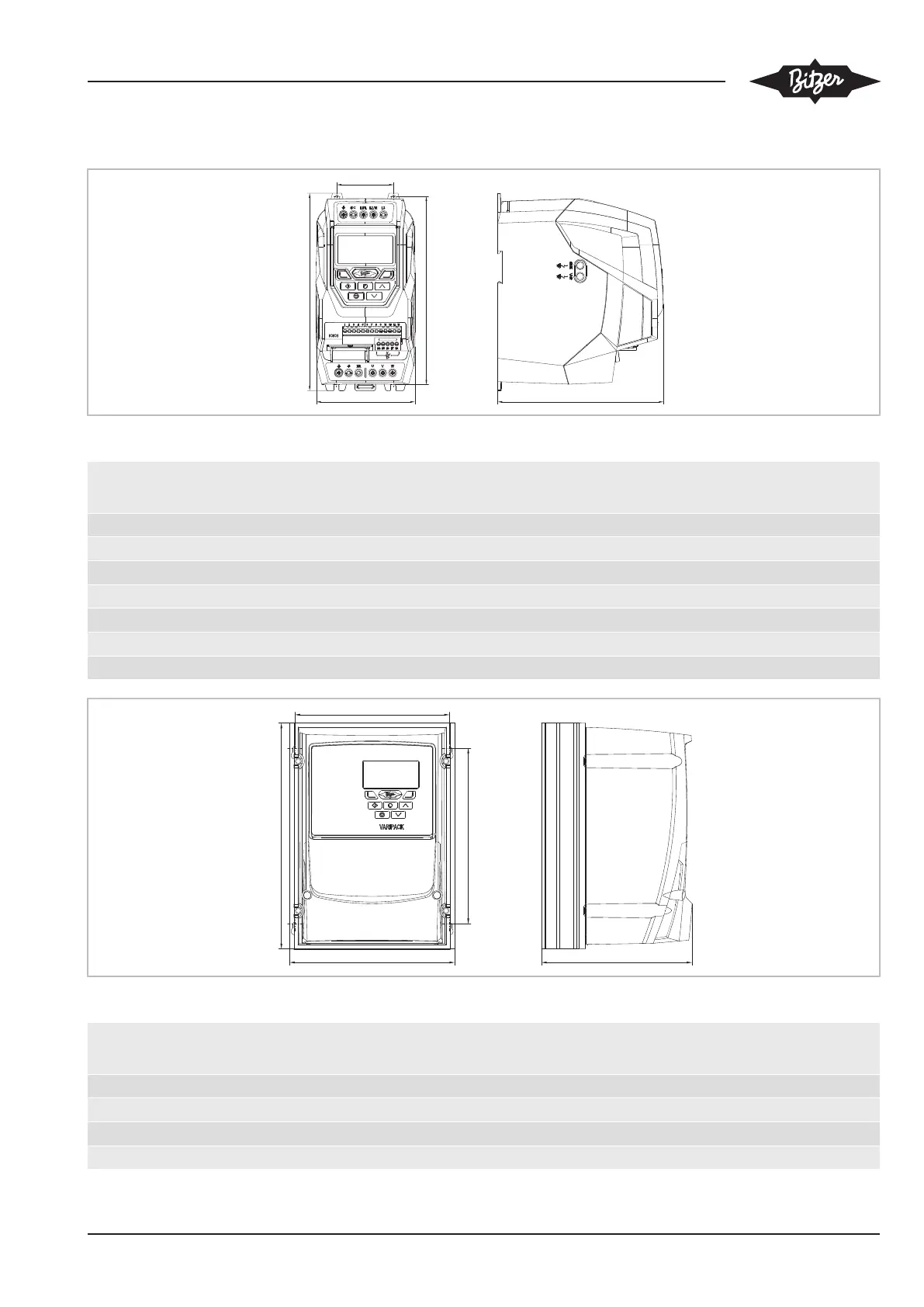

4.3 Dimensional drawings
E
A
B
D
C
Fig.4: IP20
A
mm
B
mm
C
mm
D
mm
E
mm
FMU+6-4, FMU+10-4 221 110 185 209 63
FNU+14-4, FNU+18-4, FNU+24-4 261 131 205 247 80
FOU+30-4, FOU+39-4, FOU+46-4 418 172 240 400 125
FPU+61-4, FPU+72-4, FPU+90-4 486 233 260 460 175
FQU+110-4, FQU+150-4 614 286 320 578 200
FQU+180-4, FQU+202-4 726 330 320 680 225
FSU+370-4, FSU+480-4 974 444 423 924 320
E
C
D
A
B
Fig.5: IP66
A
mm
B
mm
C
mm
D
mm
E
mm
FMY+6-4, FMY+10-4 257 188 172 200 176
FMY+14-4 257 188 196 200 176
FNY+18-4, FNY+24-4, FNY+30-4 310 211 225 252 198
FOY+39-4, FOY+46-4 360 240 260 300 227
