23 MT55 Operation & Maintenance Manual
CONTROLS IDENTIFICATION

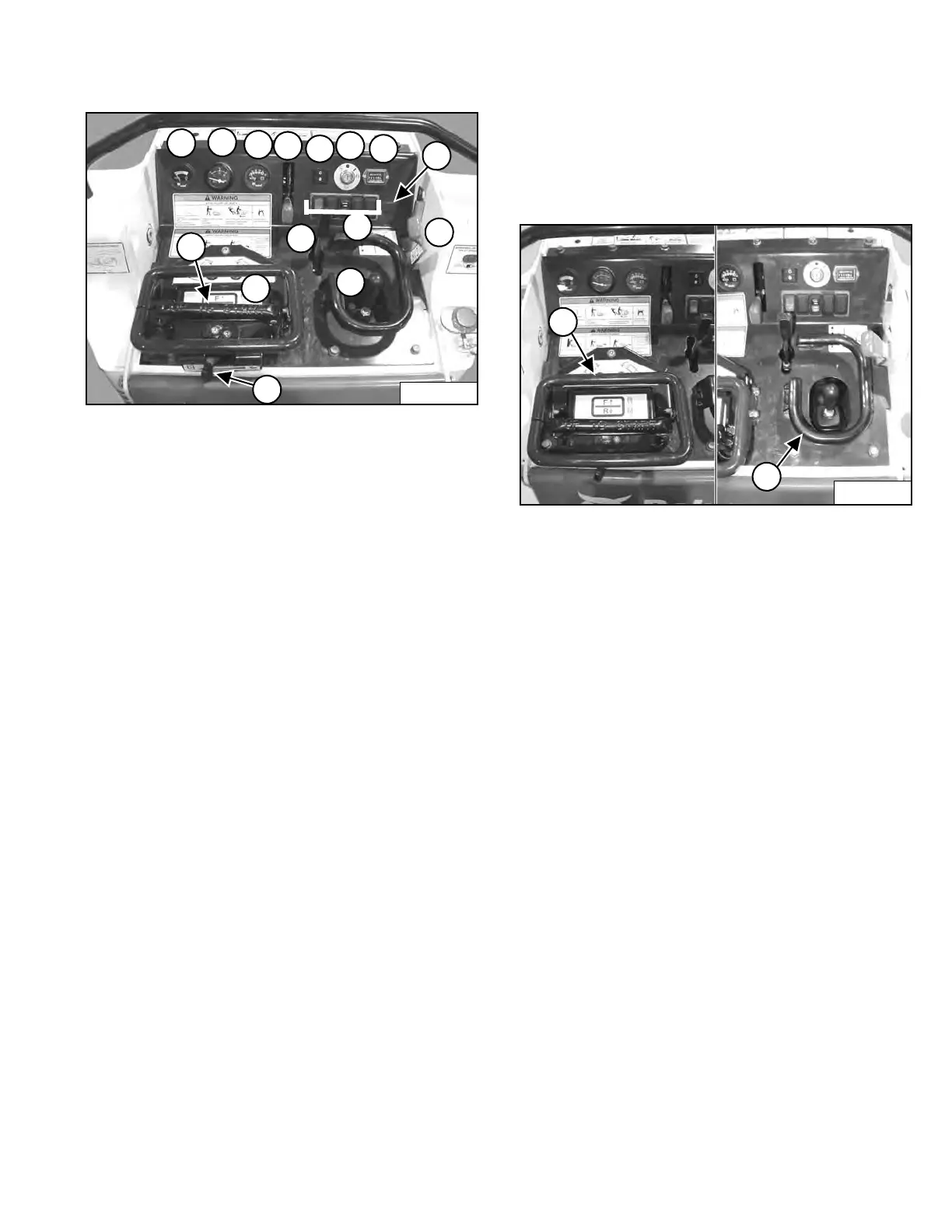

Figure 4
Reference numbers below refer to the operator’s console
[Figure 4].
1. Temperature Gauge
2. Fuel Gauge
3. Voltmeter
4. Engine Speed Control Lever
5. Engine Oil Pressure Warning Light / Hydraulic
Temperature Warning Light
6. Key Switch
7. Hourmeter
8. A - Lift Arm By-Pass
B - Field Accessory (Option)
C - Field Accessory (Option)
D - Lights (Option)
E - Auxiliary Hydraulic Mode (Option)
9. Shutdown Indicator (Option)
10. Drive / Steering Control
11. Reverse Travel Speed Control Lever
12. Auxiliary Hydraulic Control Lever
13. Lift Arm / Attachment Tilt Control Lever
14. Parking Brake Lever
15. Continuous Flow Shutoff Lever
CONTROLS OPERATION
Description
The operator controls direct the drive, steering, lift and tilt
functions. Move the controls smoothly, avoid sudden
starting and stopping.
Figure 5
Always use the Hand Bars (Items 1 and 2) [Figure 5]
when operating the controls.
You can maintain better control of the functions when you
use the hand bars to operate the Drive / Steering Control
and also when operating the lift, tilt and auxiliary controls.
P-81916
1
2
3
4
5
6
10
7
12
13
8
9
14
A B C D E
11
15
P-81914A
2
1
