Bobcat MT55 - PIVOT PINS; Inspection And Maintenance

91 MT55 Operation & Maintenance Manual
PIVOT PINS
Inspection And Maintenance

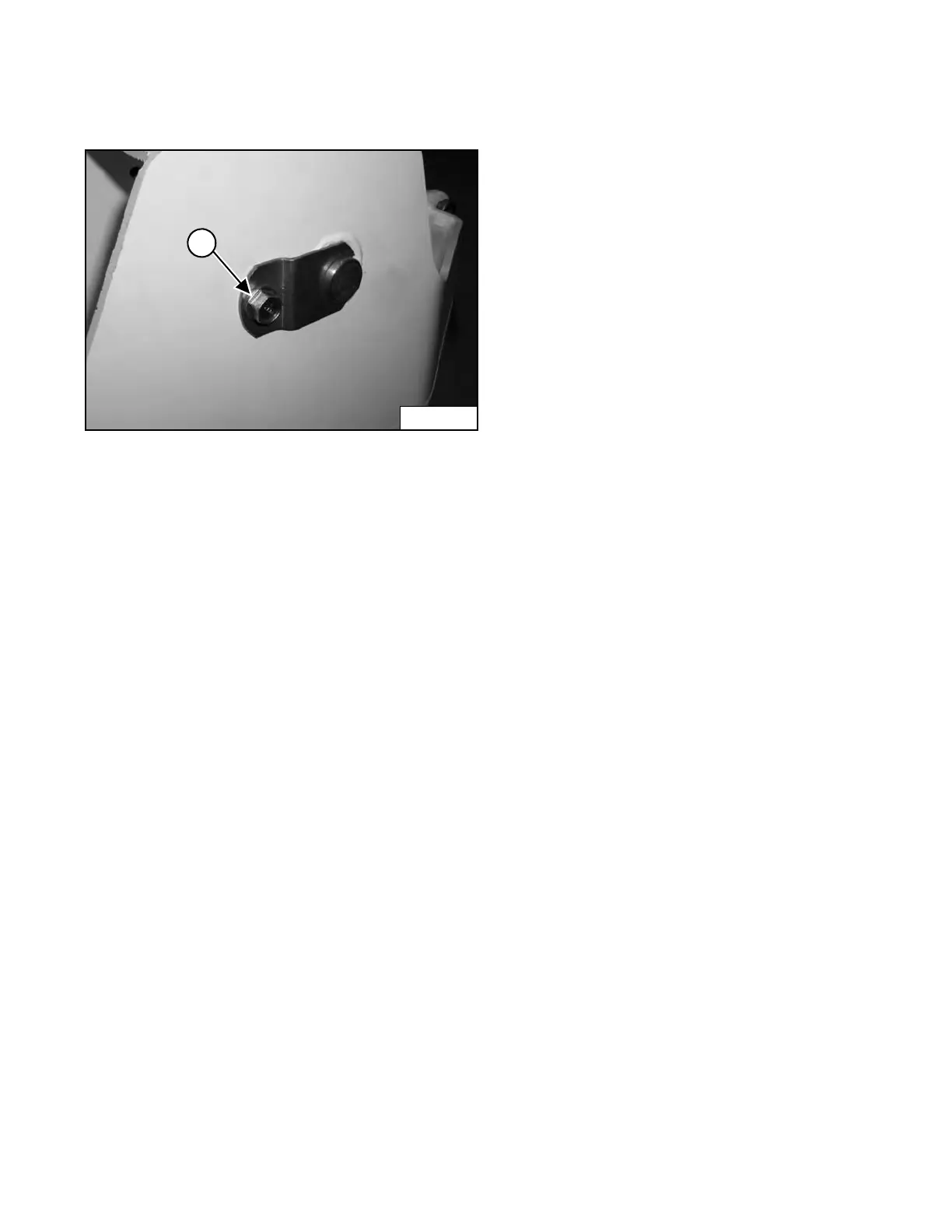

Figure 125
All lift arm and cylinder pivots have a large pin held in
position with a retainer and bolt (Item 1) [Figure 125].
Check that the bolts are tightened to 24 - 27 N•m (18 - 20
ft-lb) torque.
P-45406
1
