DRIVING AND STEERING THE MINI TRACK LOADER
Operation
Figure 12
Figure 13

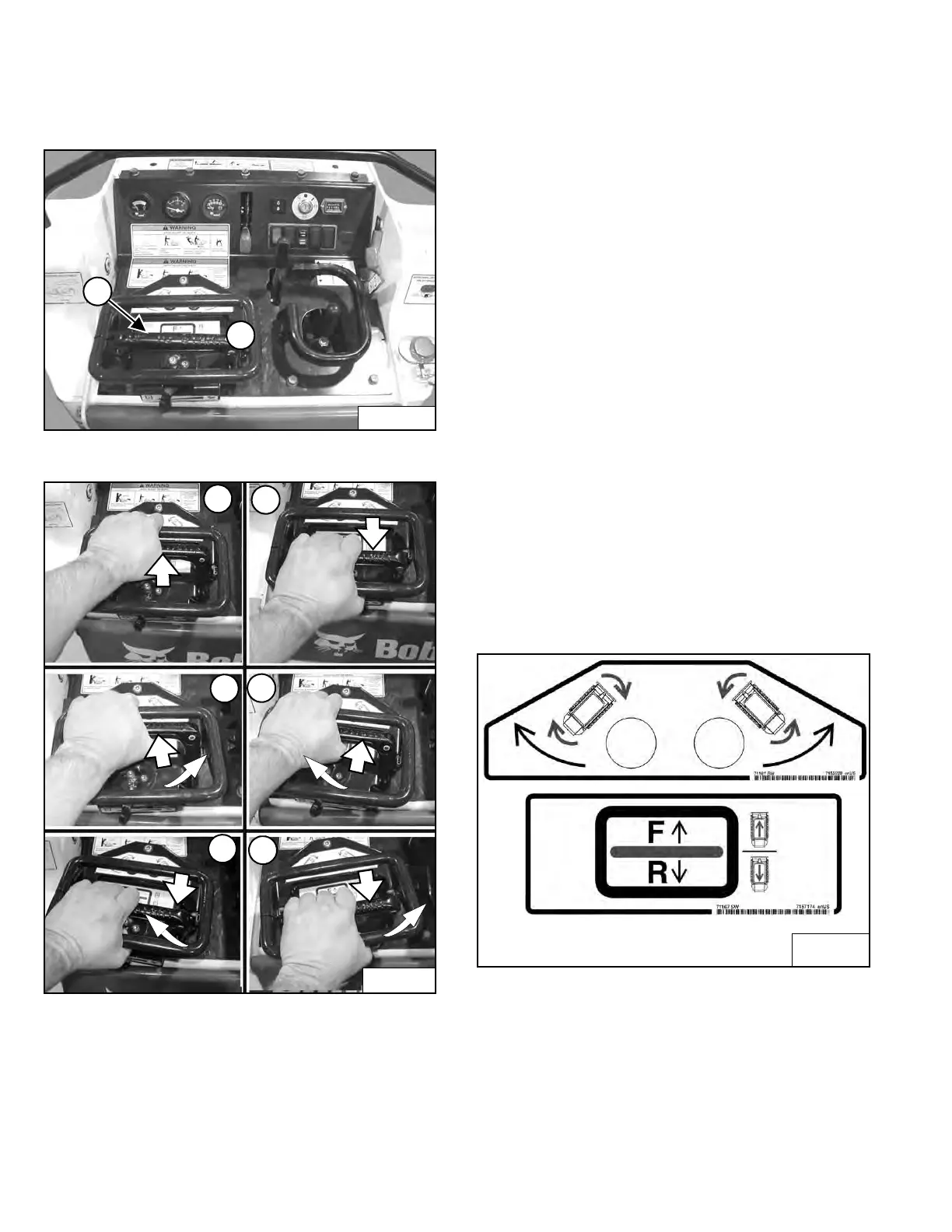

The Drive / Steering Control (Item 1) is on the left side of
the operator’s console. The Continuous Flow Shutoff
Lever (Item 2) [Figure 12] will be depressed when you
place your hand on the Drive / Steering Control.
FORWARD TRAVEL - Move the Drive Control forward
(Item 1) [Figure 13].
REVERSE TRAVEL - Move the Drive Control backward
(Item 2) [Figure 13].
FORWARD LEFT TURN - Move the Drive Control
forward and swing the Steering Control to the right (Item
3) [Figure 13].
FORWARD RIGHT TURN - Move the Drive Control
forward and swing the Steering Control to the left (Item 4)
[Figure 13].
REVERSE LEFT TURN - Move the Drive Control
backward and swing the Steering Control to the left (Item
5) [Figure 13].
REVERSE RIGHT TURN - Move the Drive Control
backward and swing the Steering Control to the right
(Item 6) [Figure 13].
Figure 14
The decals on the Drive / Steering Control [Figure 14]
also shows the operation instructions.
NOTE: The engine will not start unless the Drive /
Steering Control (Item 1) [Figure 12] is in
NEUTRAL and the Continuous Flow Shutoff
Lever (Item 2) [Figure 12] is in the UP position.
