HYDRAULIC CONTROLS
Description

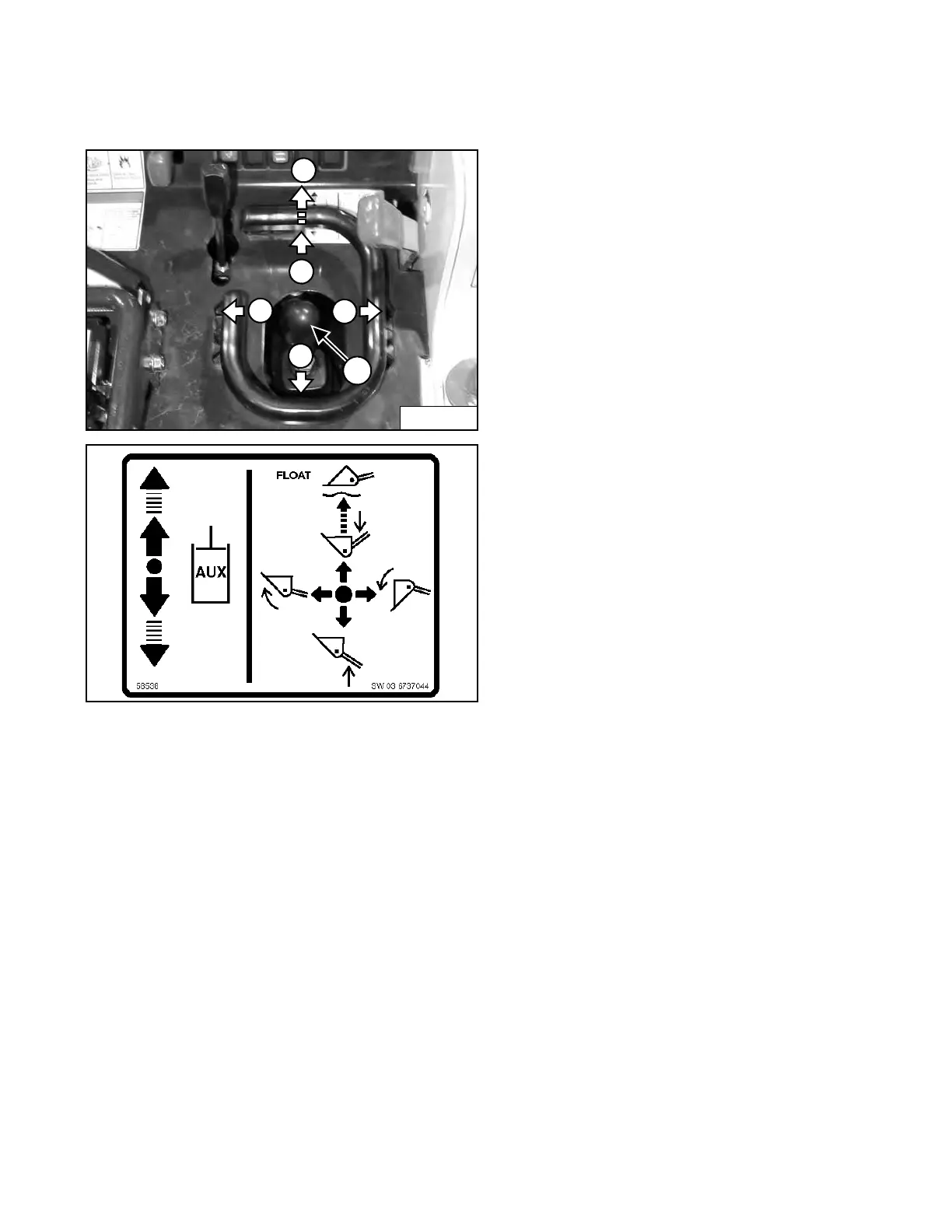

Figure 19
The Lift Arm / Attachment Tilt Control Lever (Item 1)
[Figure 19] controls the movement of the lift arms and
the attachment tilt.
Lift Arm Operation
A - Raise Lift Arms
B - Lower Lift Arms
Lift Arm Float Position
C - Lift Arms in Float Position
Use the float position of the lift arms to level loose
material while driving backward.
Tilt Operation
D - Tilt Attachment Backward
E - Tilt Attachment Forward
P-81900
1
C
B
D
A
E
