Weather Radar
Tuning and Control Panel (TCP)

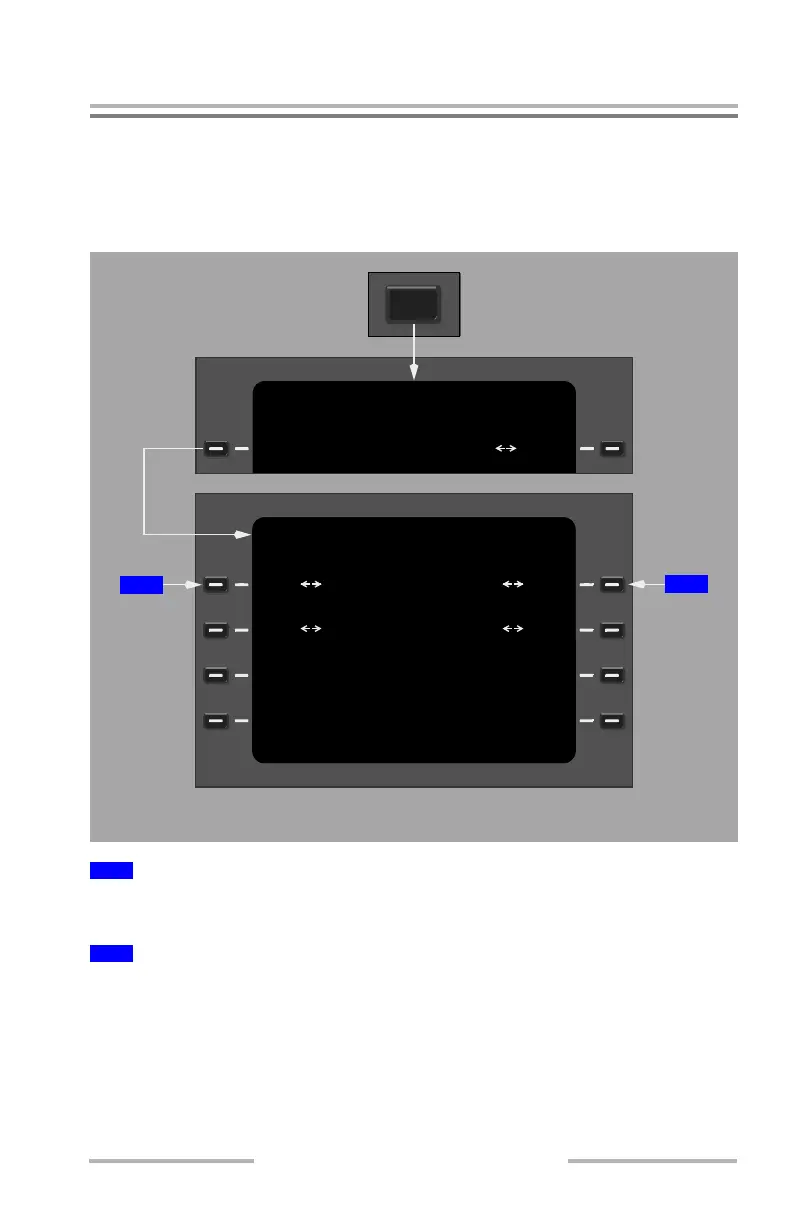

Power to the left and right weather radar systems is controlled from the TCP SYS
POWER screen.
Push – toggles system power for the left weather radar ON (enabled) or OFF
(disabled).
Push – toggles system power for the right weather radar ON (enabled) or OFF
(disabled).
1
Left Weather Radar System Power (WXR L)
2
Right Weather Radar System Power (WXR R)
OFF
MENU
>
ALERT/XPDR CTL
<SYS POWER
MENU
ON>
SYS POWER
WXR L
<ON
<ON
1
TUNING AND CONTROL PANEL
ON
ON>
XPDR L
OFF
OFF
WXR R
XPDR R
OFF
OFF
2
February 13, 2009
