Boeing 787-8 - TCAS Controls (Tuning and Control Panel)

787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Warning Systems -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 15.10.11
TCAS Controls (Tuning and Control Panel)
Push – selects the desired TCAS display mode.
ABOVE – displays TCAS traffic vertically from 2,700 feet below to 9,900 feet
above current flight altitude.
NORM (normal) – displays TCAS traffic vertically from 2,700 feet below to
2,700 feet above current flight altitude.
BELOW – displays TCAS traffic vertically from 9,900 feet below to 2,700 feet
above current flight altitude.
The selected mode is highlighted in large green font.
The default selection is NORM.
1

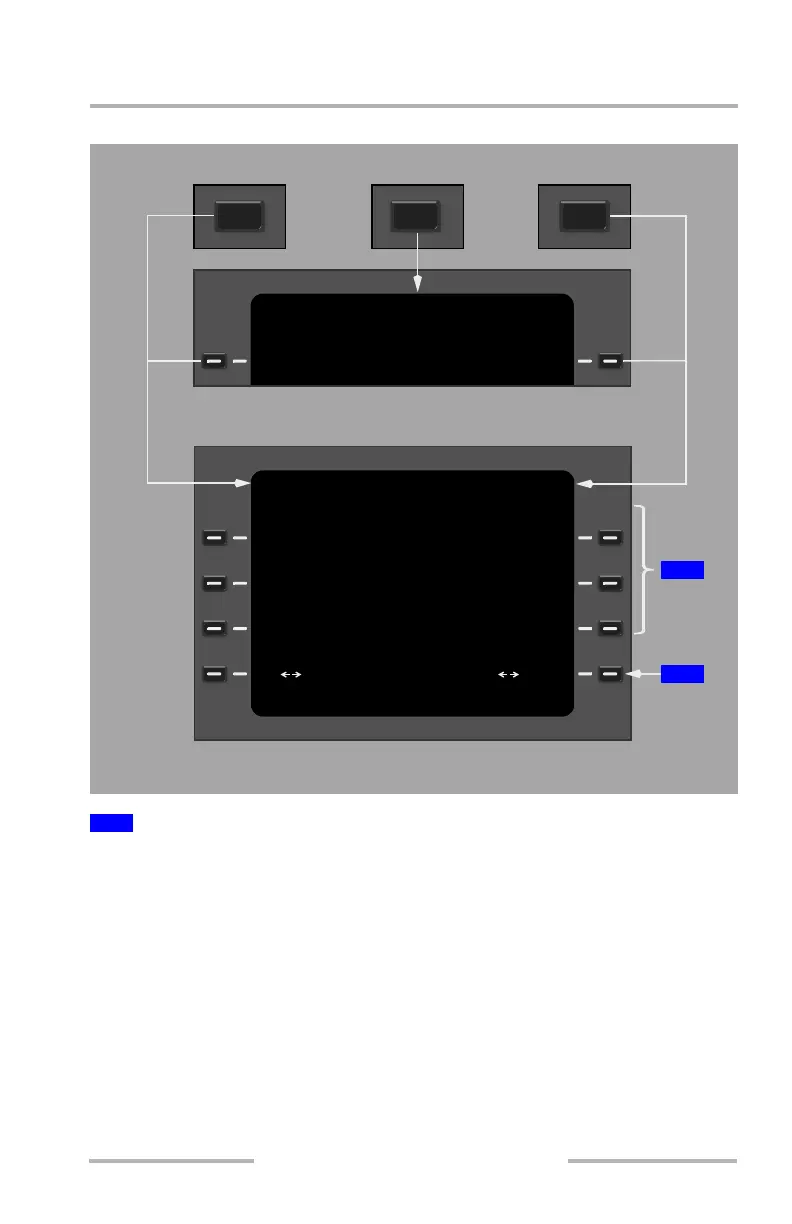

XXXX TCAS Display
Captain TCP Center TCP F/O TCP
Captain or F/O Transponder Display as Selected
TUNING AND CONTROL PANEL
F/O>
TRANSPONDER
<CAPT
BELOW>
CAPT TCAS
ABOVE>
ABS REL>
TRANSPONDER
XPDR CODE
2307
<IDENT
<L
R
XPDR SYS
NORM>
CAPT TCAS ALT
XPDRXPDRXPDR
1
2
August 14, 2009
