787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Warning Systems -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 15.10.15
TRAFFIC (amber) – TA is occurring, and RA is not occurring.
RA (red) – data tag displayed for no-bearing RA.
TA (amber) – data tag displayed for no-bearing TA.
Data tag contains distance, altitude, and vertical motion arrow.
[Option – Range arcs]
Displayed when TCAS or weather radar selected; replace range scale tics.
[Option – TCAS 3 NM range ring, range arcs]
Displayed when TCAS selected and range selected is less than 80 miles.

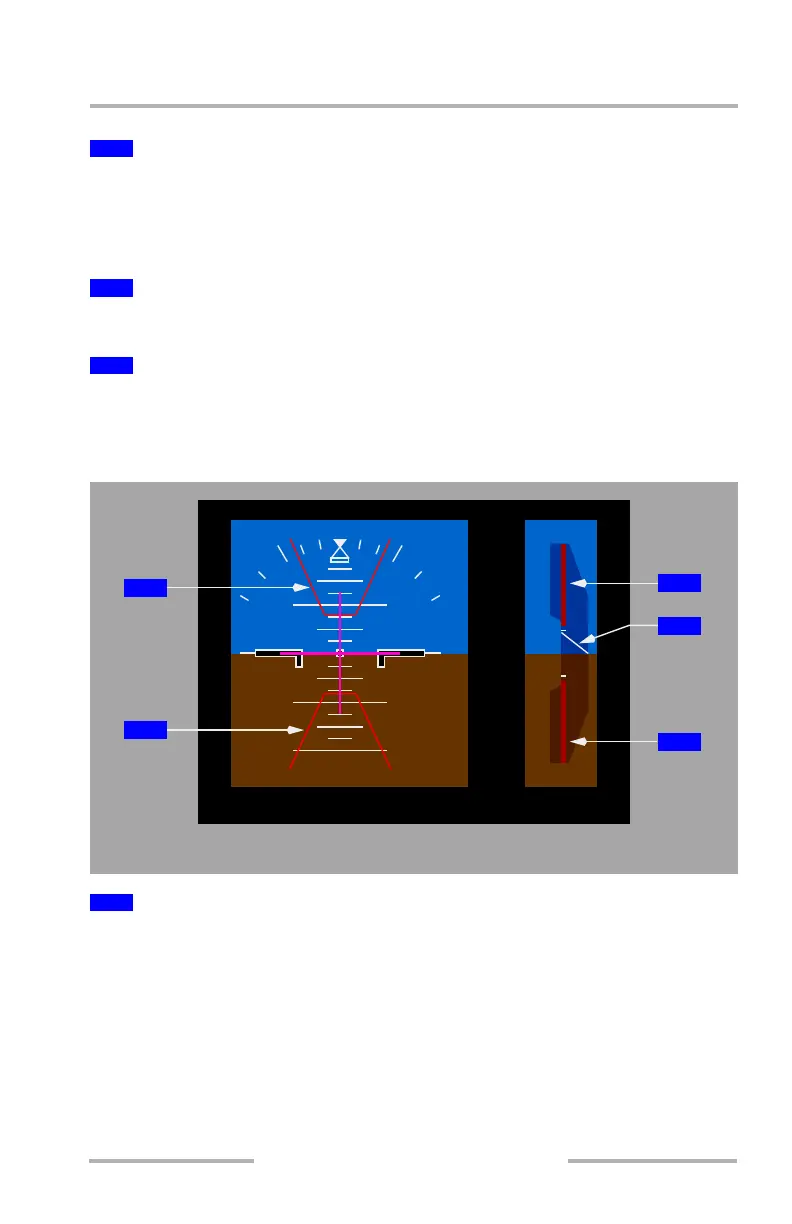

TCAS PFD Vertical Guidance
[Option – Split cue]
Displayed: (red) – RA is occurring.
Note: For a single RA, only one red outlined RA pitch region, either above or
below, is displayed at a time. For two or more RAs, two red outlined RA
pitch regions may be displayed.
To ensure vertical separation, the center of the airplane symbol must be outside the
red outlined RA pitch regions to avoid.
5
TCAS No Bearing Messages
6
TCAS/Weather Radar Range Arcs
7
TCAS Three Mile Ring
1
RA Pitch Region To Avoid (red outlined)
10 10
10 10
1
1
2
2
6
6
PRIMARY FLIGHT DISPLAY
1
1
2
2
3
August 14, 2009
