787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Landing Gear -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
14.10.2 D615Z003-TBC
Push – releases the landing gear lever lock.
NORM – the landing gear lever operates normally.
DOWN – the landing gear extends by the alternate extension system.
Note: Alternate extension may be selected with the landing gear lever in any
position.

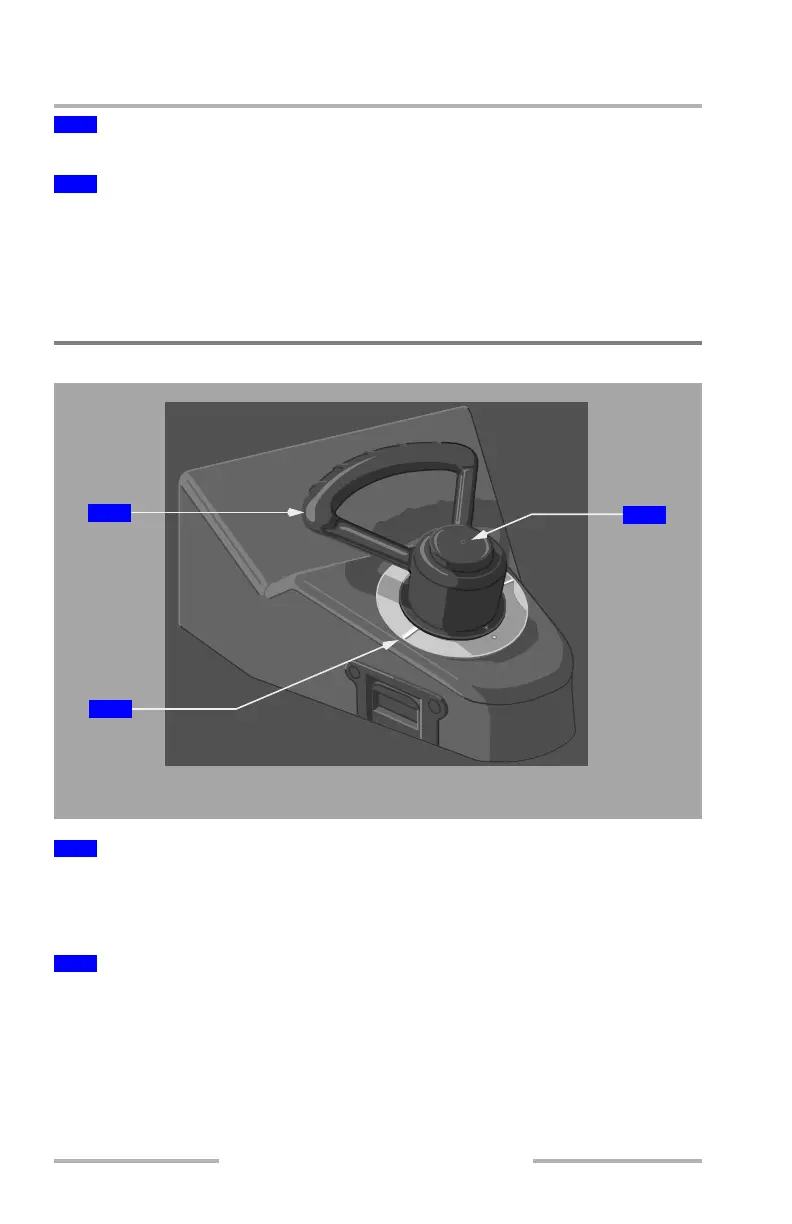

Nose Wheel Steering Tillers
Rotate –
• turns the nose wheels up to 70º in either direction
• overrides rudder pedal steering
Shows tiller displacement from the straight–ahead, neutral position.
There are three marks on the tiller assembly. The center mark identifies the neutral
position of the tiller, while the other two identify the maximum left and right
displacements.
3
Landing Gear Lever Lock Override (LOCK OVRD) Switch
4
Alternate Gear (ALTN GEAR) Switch
1
Nose Wheel Steering Tiller
2
Tiller Position Indicator
LEFT AND RIGHT SIDEWALLS
1
2
3
