Landing Gear -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
14.10.6 D615Z003-TBC
Gear Synoptic Display

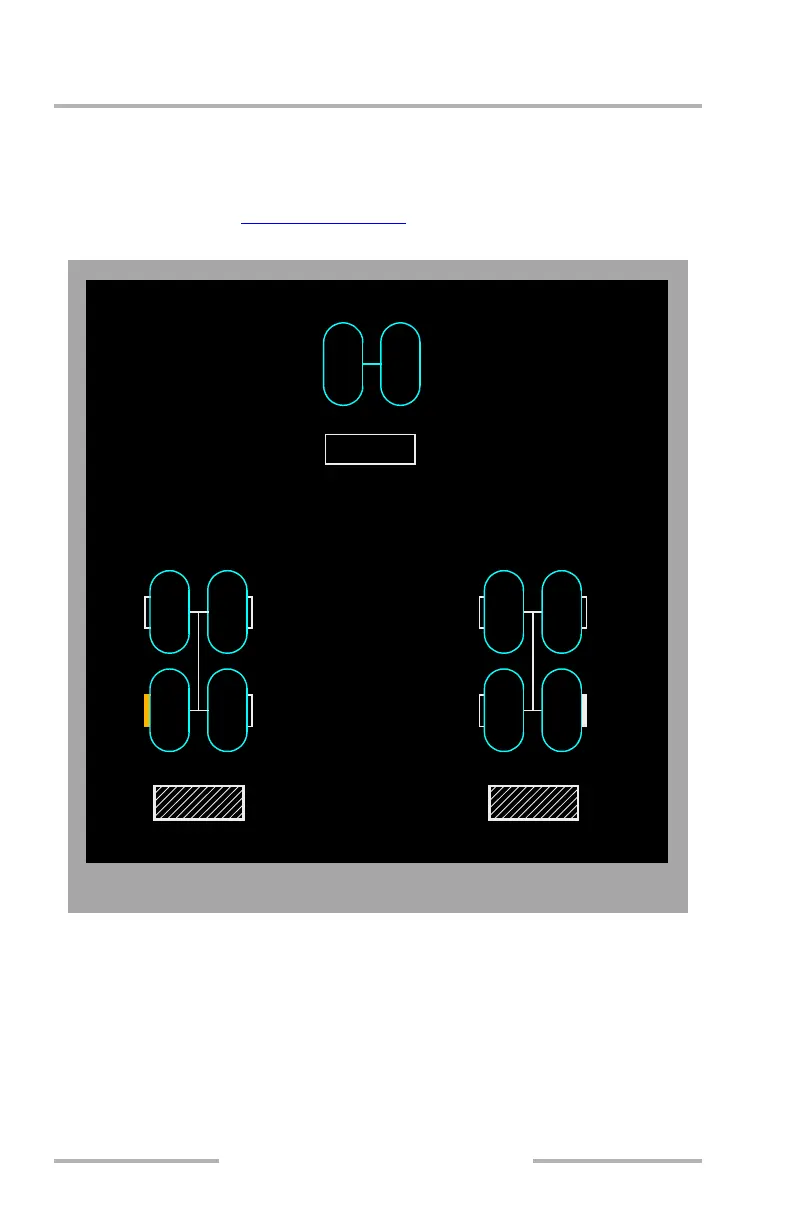

The landing gear synoptic is displayed by pushing the systems (SYS) display
switch on the display select panel, then selecting the landing gear (GEAR)
synoptic key. (Refer to Display Select Panel
in Chapter 10, Section 10, for
additional information.)
MULTIFUNCTION DISPLAY
CLOSED
160
DOOR
DOOR
1.7
BRAKE
1.2
1.71.5
1.3
160
160160
160
2.6
1.5 1.7
ASKID
160
160160
160
160
12 34
56 78
910
June 16, 2008
