12.10 Fuel-Controls and Indicators
Fuel10 Controls and IndicatorsControls and Indicators
Fuel System
ON – the fuel pump is selected ON.
Off (ON not visible) – the fuel pump is selected off.
Illuminated (amber) – fuel pump output pressure is low.
Illuminated (amber) –
• fuel pump output pressure is low with the pump selected ON
• illumination is inhibited when the center tank fuel pump switch is selected
off
On (bar visible) – the crossfeed valve is selected open.
Off (bar not visible) – the crossfeed valve is selected closed.
1

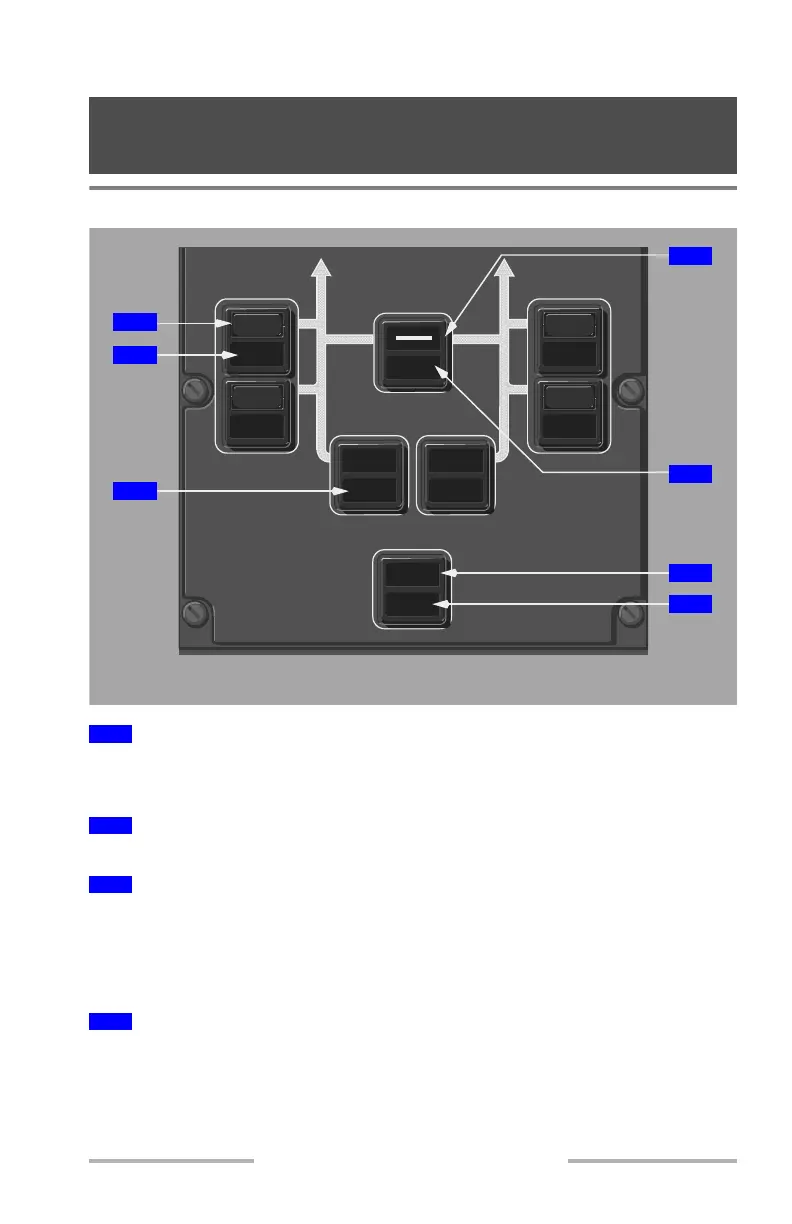

Fuel Pump Switches
2
Forward and Aft Fuel Pump Pressure (PRESS) Lights
3
Center Fuel Pump Pressure (PRESS) Lights
4
CROSSFEED Switch
CENTER PUMPS
LR
L PUMPS R PUMPS
FWD FWD
AFT AFT
ON
PRESS
ON
PRESS
ON
PRESS
ON
PRESS
FUEL
CROSSFEED
VALVE
BALANCE
PRESS
ON
PRESS
ON
FAULT
ON
OVERHEAD PANEL
6
7
4
5
2
3
1
