Fuel -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 12.10.3
Illuminated (amber) – the jettison nozzle valve is not in the selected position.
ARMED –
• arms the jettison system
• initializes fuel–to–remain at the MLW fuel quantity
Off (ARMED not visible) – disarms the jettison system.
Illuminated (amber) –
• a system fault has occurred
• fuel jettison is inoperative
PULL ON – changes the mode from MLW (maximum landing weight) to MAN
(manual).
Rotate –
• clockwise to increase the MANUAL fuel–to–remain quantity
• counterclockwise to decrease the MANUAL fuel–to–remain quantity
Push – automatically selects the MLW fuel–to–remain quantity.

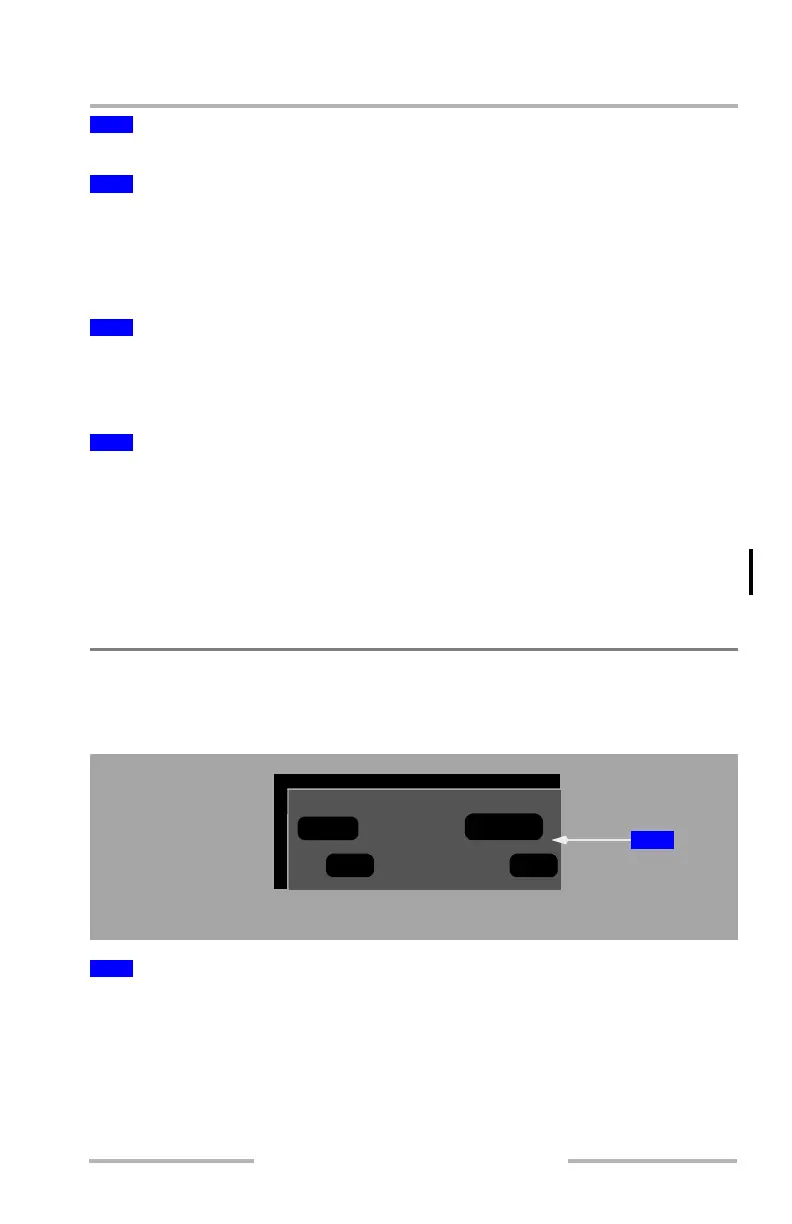

Fuel Indications
Normal Fuel Indications
[Option – English units]
[Option – English / Metric units]
Total fuel quantity (pounds / kilograms x 1000).
Fuel temperature (ºC).
2
Fuel Jettison Nozzle VALVE Lights
3
Fuel Jettison ARM Switch
4
Fuel Jettison FAULT Light
5
FUEL TO REMAIN Selector
1
Normal Fuel Indications
5465.
215.5
LBS X
1000
-10c
SAT
GROSS WT
+13c
FUEL
TEMP
TOTAL FUEL
EICAS DISPLAY
1
