787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Warning Systems -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 15.10.13
Selected –
• traffic data applied to navigation display only
• traffic data displayed in MAP or MAP CTR modes
• TFC displayed in cyan on the lower left of display
TCAS Traffic and Alert Message TRAFFIC Display
Displayed when TFC selected and respective ND is in MAP or MAP CTR mode.
(Refer to TCAS
in Chapter L, Section 10, for additional information.)
Displayed automatically when:
• a RA or TA is occurring, and
• TFC not selected on either ND, and
• respective ND is in MAP or MAP CTR mode
[Option – TCAS 3 NM range ring, range arcs]
2
Traffic (TFC) Data Menu Selection
10
T/D
TFC
-05
+02
+03
+09
OFFSCALE
TRAFFIC
RA 4.9 +04
TA 5.2 -21
FRED
GRH
1
2
9
1
5

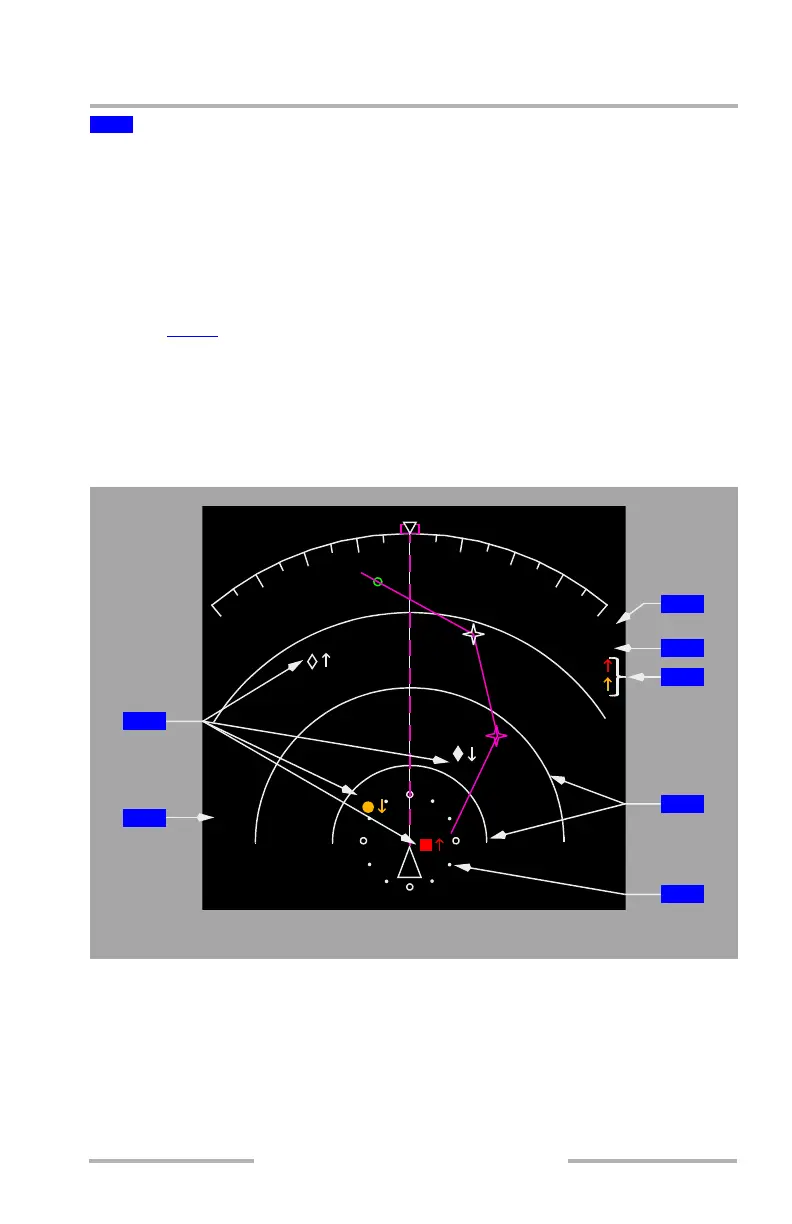

NAVIGATION DISPLAY
2
7
6
3
5
4
1
August 14, 2009
