Alerts Displayed on the HUD

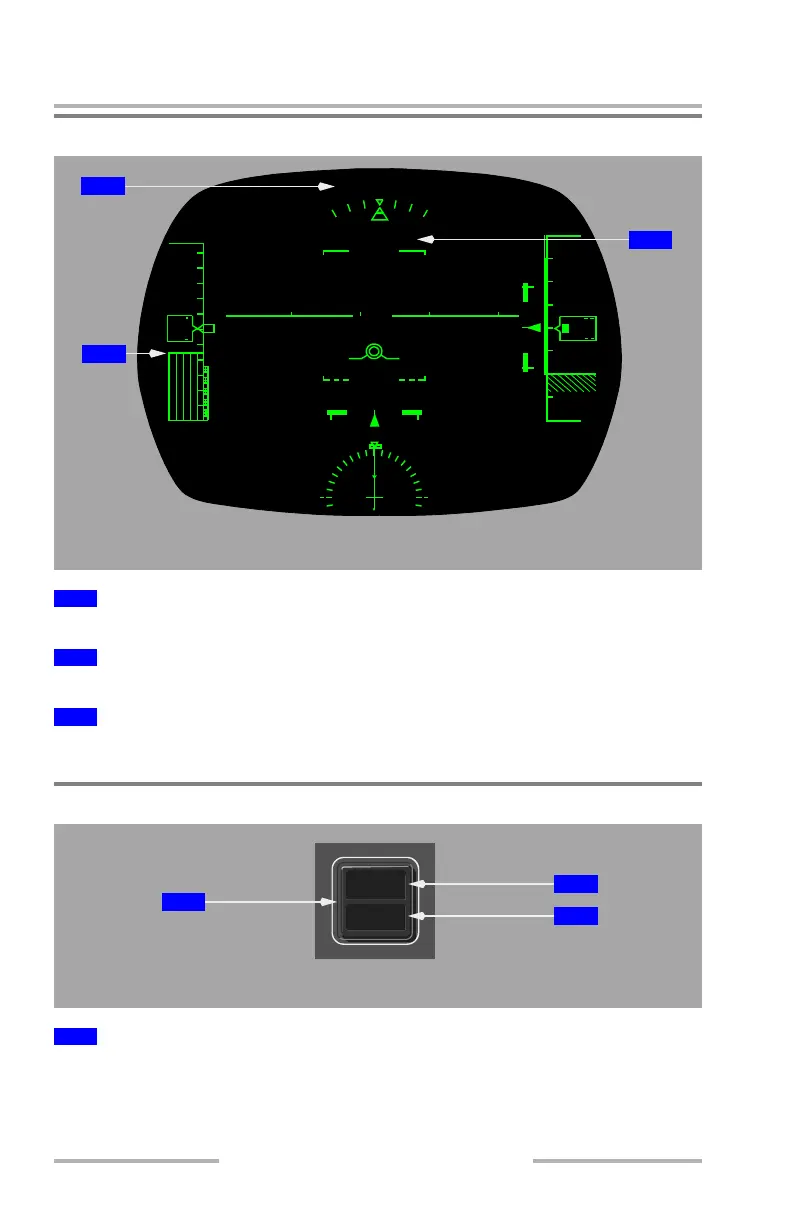

The NO AUTOLAND alert displayed on the PFD is also displayed on the HUD.
The TAMS display on the PFD speed tape is also displayed on the HUD.
All time critical warnings displayed on the PFD are also displayed on the HUD.
Master WARNING/CAUTION Reset Switches and Lights
Push –
• extinguishes master WARNING lights
• extinguishes master CAUTION lights
1
Autopilot Engaged Alert
2
Thrust Asymmetry Minimum Speed
3
Time Critical Warnings
1
Master WARNING/CAUTION Reset Switch
