787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Landing Gear -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 14.10.7

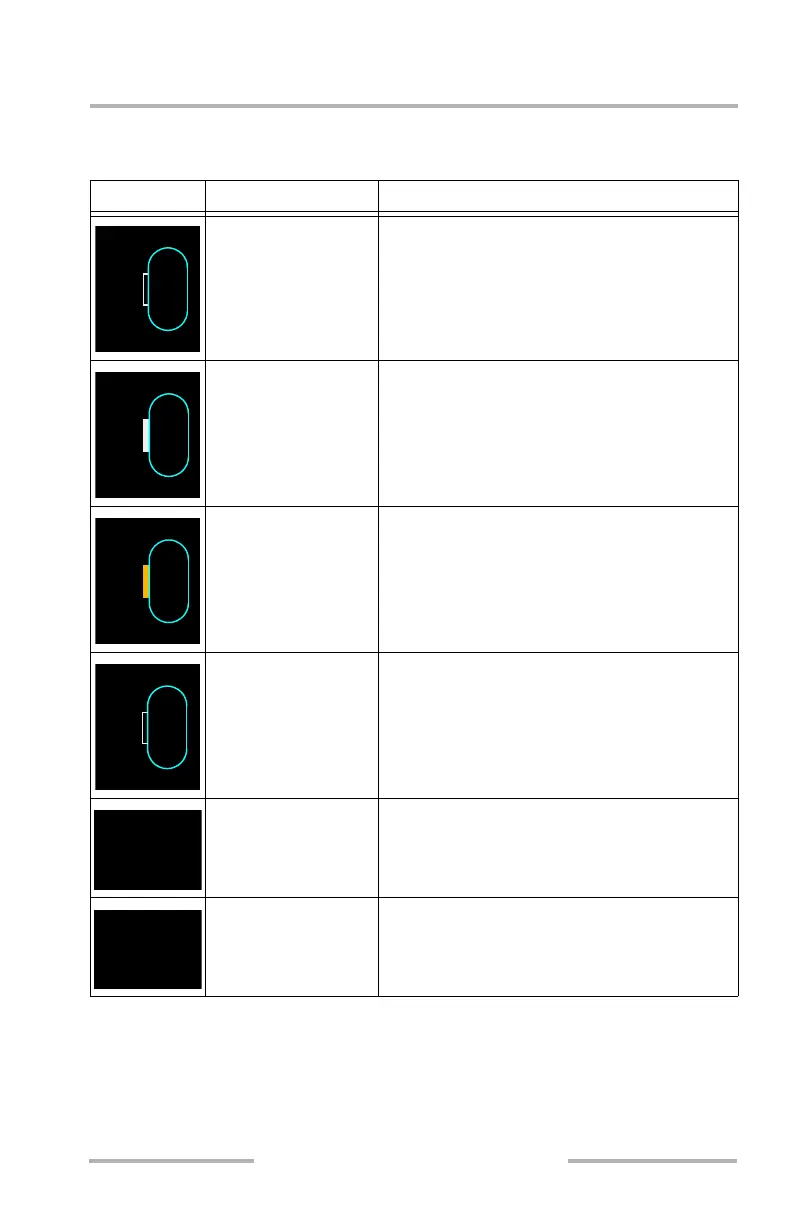

Synoptic Indication Symbology
Brake Indications
Symbol Condition Description
Brake Normal
(white)
Brake temperature value in normal range from
0.0 to 2.1
Hottest Brake
Normal (solid white)
Brake temperature value from 1.5 to 2.1
Only the hottest brake per truck is displayed at
any time.
Brake Overheat
(solid amber)
Brake temperature value from 2.2 to 9.9
Multiple brake overheat symbols may appear
simultaneously.
Brake Signal Invalid
(white, low intensity)
Brake temperature value invalid.
Brake Inoperative
(amber)
Indicates loss of brake function or brake
deactivation on the associated wheel.
Antiskid Inoperative
(amber)
Indicates antiskid fault on the associated wheel.
1.5
2.1
2.4
BRAKE
ASKID
August 14, 2009
