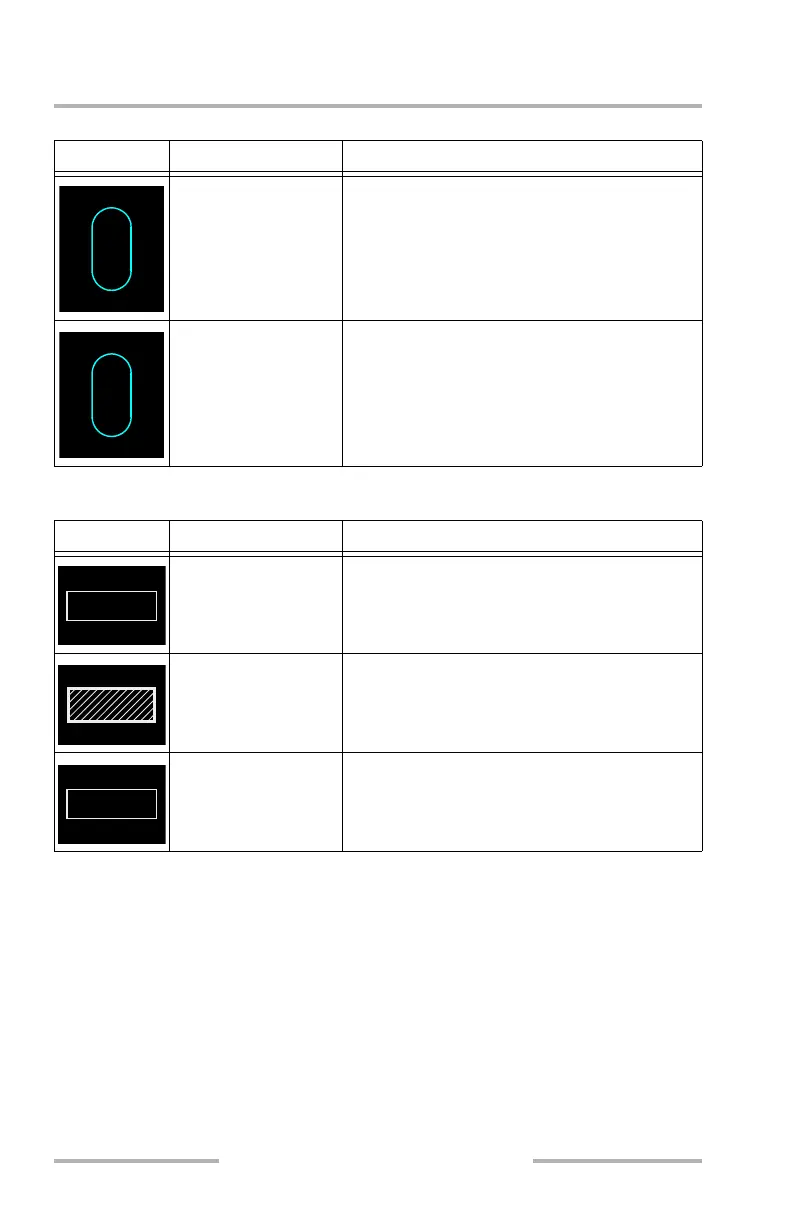

Tire Pressure Indications
Gear Door Indications
Symbol Condition Description
Tire Pressure Normal
(white)
Tire Pressure
Abnormal (amber)
Indicates respective tire pressure in abnormal
high or low range.
Note: EICAS advisory message TIRE
PRESS is displayed.
Symbol Condition Description
Door Closed Indicates respective gear door is closed.
Note: Nose gear doors indicate closed
when the gear is down.
Door In Transit Indicates respective gear door is in-transit.
Door signal invalid
(white, low intensity)
Indicates respective gear door sensor reads
invalid.
160
80
CLOSED
