Landing Gear -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 14.10.3
A rudder pedal steering disconnect switch is provided to temporarily disable the
rudder pedal inputs.
Note: The switch is used during a flight controls freedom of motion check. The
switch must be held down to function and is spring loaded to the out
position.
Brake System
Rudder/Brake Pedals
Adjusts the rudder pedals forward or aft.
Note: To avoid inadvertent rudder pedal movement, the crank handle should be
stowed when not in use.
Push the full pedal – turns the nose wheel up to 8º in either direction.
Push the top of the pedals – actuates the wheel brakes.
For additional information, refer to:
• Rudder Trim Control
, Ch. 9, Sec. 10
• Normal Mode Yaw Control
, Ch. 9, Sec. 20
• Secondary and Direct Mode Yaw Control
, Ch. 9, Sec. 20
3

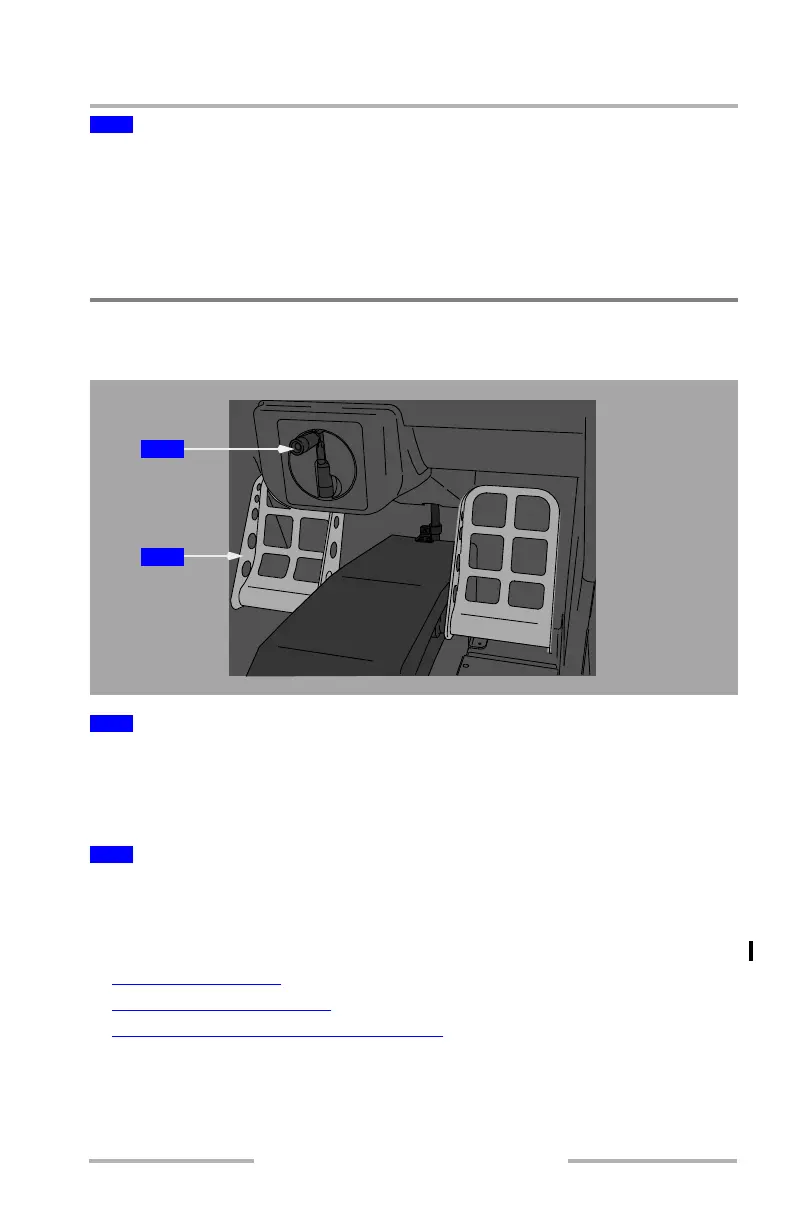

Rudder Pedal Steering Disconnect Switch
1
Rudder Pedal Adjust Crank
2
Rudder/Brake Pedals
1
2
