Flight Management, Navigation -
FMC Descent and Approach
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 11.43.13
Default state:
• ON (large green font) for ILS or IGS approaches
• OFF (large green font) for LOC, BAC, LDA or SDF approaches
Displays a list of transitions to the selected approach.
Approach transitions include IAFs, feeder fixes, and fixes providing routing to the
FAF.
When a transition is not selected, the FMC displays a straight-in approach starting
at a waypoint 4 to 8 miles outside of the FAF. The waypoint may be conventionally
named (i.e. LACRE) or a charted fix (i.e. CFXXX, where XXX is the runway
number).
Push –
• selects transition for entry into the route
• deletes all other transitions
• displays INTC prompt for selected transition
Selecting the prompt displays a modified RTE LEGS page with an intercept
course to the approach transition fix (usually the IAF) for the selected approach.

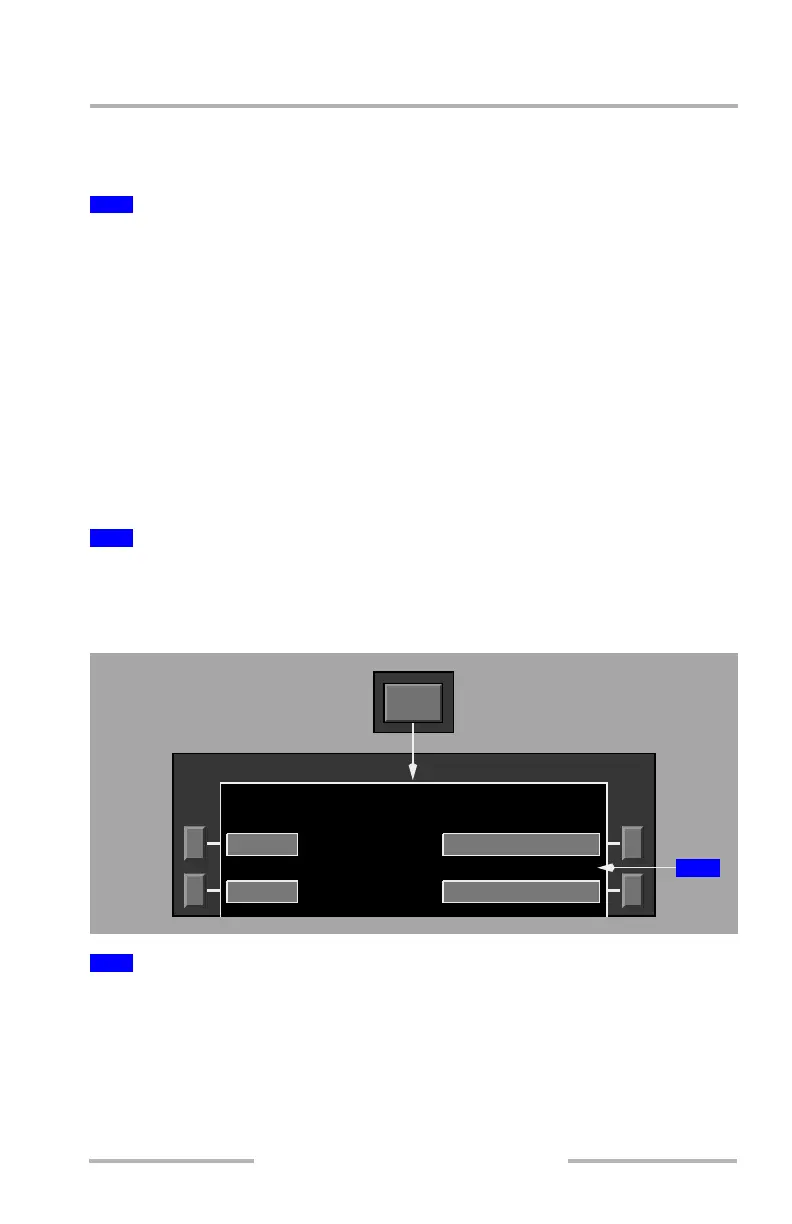

Arrivals Legs Page
Displays the glidepath angle used by VNAV on final approach to the runway.
8
Approach Transitions (TRANS)
9
Final Approach Fix Intercept (XXXXX INTC)
1
Glidepath Display
o
00.3PG5NM
7NM232
o
o
232
82
2211
71
R23WR
YLLEP
23/
/055
SGEL1ETR
A00/0
1
LEGS
August 14, 2009
To Next Page
