787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 10.10.49

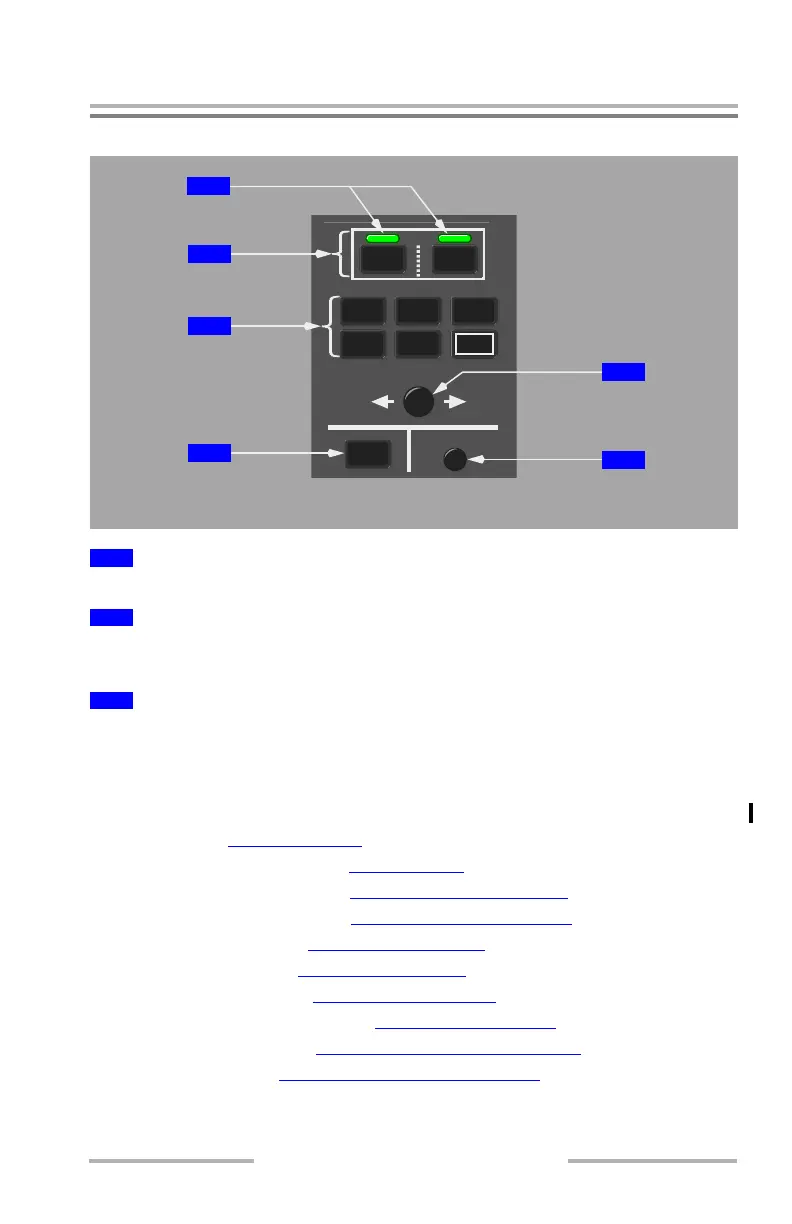

Display Select Panel
Illuminates to show the MFD window the display select panel controls.
Selects the on-side MFD location (left or right window on each upper display unit)
that is affected by pressing display switch(es).
Pushing the switch displays the associated format. Pushing the same switch a
second time causes the MFD format to be removed and the default format to be
displayed.
SYS – system synoptics and maintenance information:
• system menu (System Displays
, Ch. 1, Sec. 22)
• status messages for dispatch (Status Display
, Ch. 15, Sec. 10)
• electrical system indications (Electrical Synoptic Display
, Ch. 6, Sec. 10)
• hydraulic system indications (Hydraulic Synoptic Display
, Ch. 13, Sec. 10)
• fuel system indications (Fuel Synoptic Display
, Ch. 12, Sec. 10)
• air system indications (Air Synoptic Display
, Ch. 2, Sec. 10)
• door system indications (Door Synoptic Display
, Ch. 1, Sec. 30)
• landing gear / brake indications (Gear Synoptic Display
, Ch. 14, Sec. 10)
• flight control indications(Flight Control Synoptic Displays
, Ch. 9, Sec. 10)
• EFIS / DSP backup (Systems MFD Control Selection
, Ch. 10, Sec. 10)
1
Display Lights
2
Multifunction Display (MFD) Switches
3
Upper Display Switches
ENG
ND
COMM
CHKL
INFOCDUSYS
EICAS
CANC/RCL
L
MFD
R
GLARESHIELD PANEL
6
5
2
3
4
1
