787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Hydraulics -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
13.10.6 D615Z003-TBC

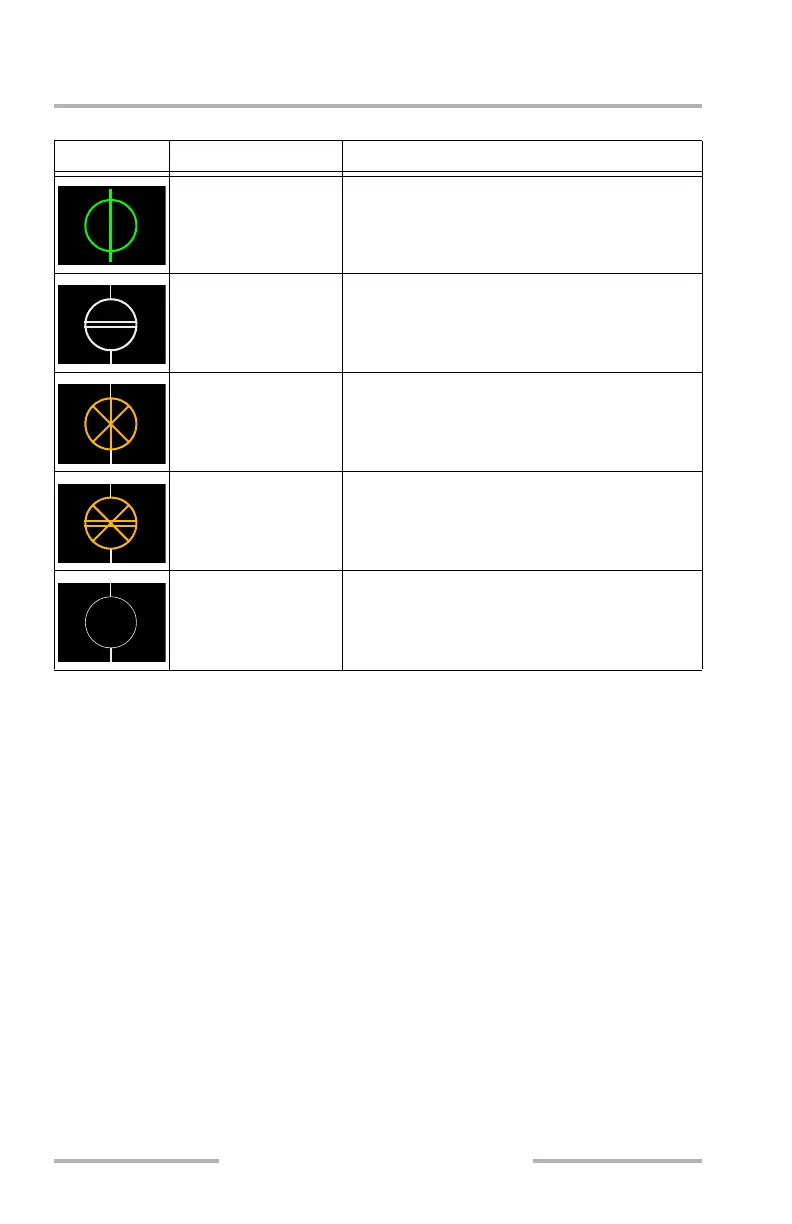

EDP Shutoff Valves (SOV) Synoptic Indications
Symbol Condition Description
Valve open (green) Engine fire handle not pulled.
Valve closed (white) Engine fire handle pulled.
Valve failed open
(amber)
Valve failed closed
(amber)
Valve invalid (white,
low intensity)
June 16, 2008
