Interior Emergency Lighting
Interior emergency lighting consists of door, aisle, cross–aisle, escape path, exit
lights, and luminous exit signs.
Escape path lighting consists of lights installed in the arm rest of the center
passenger seats, center galleys, lavatories, closets and partitions spaced at
intervals in the aisles and cross–aisles. When illuminated, escape path lighting
provides visual guidance for emergency evacuation if all sources of lighting more
than four feet above the aisle floor are obscured by smoke.
Luminous exit locator signs are located at each cabin exit door.

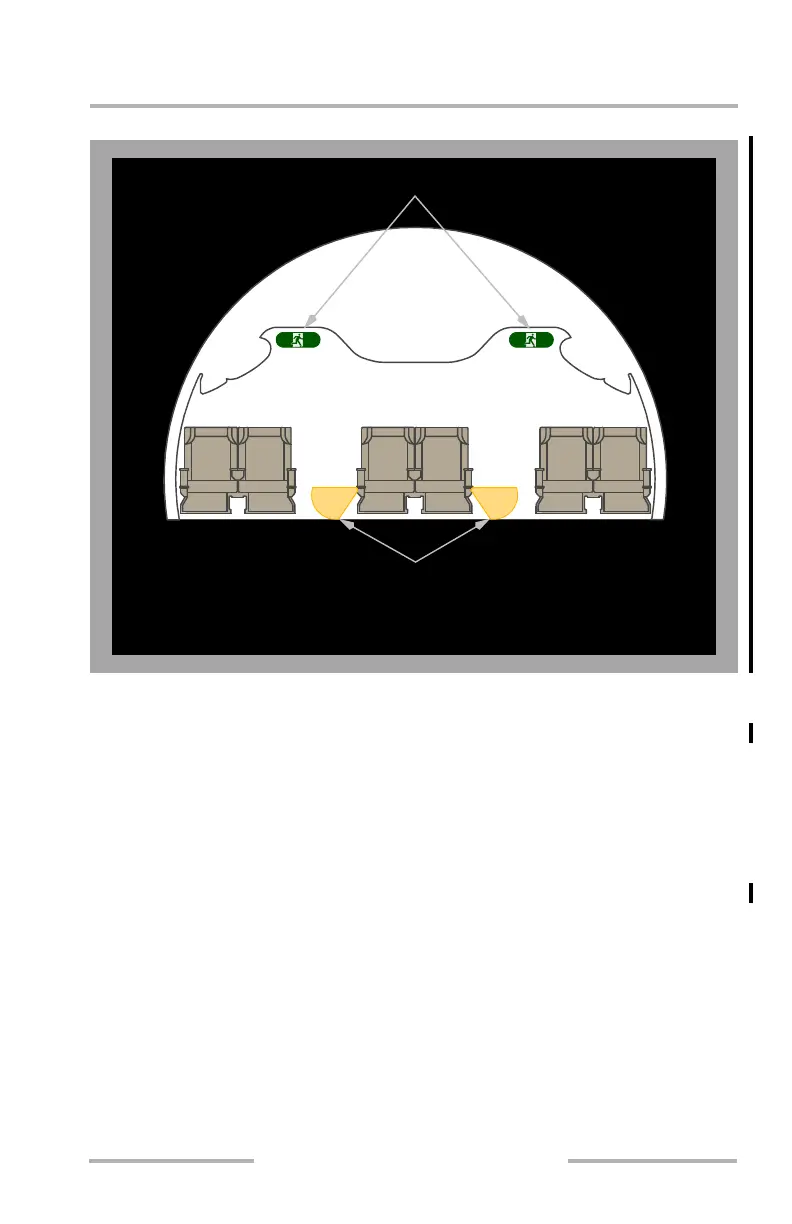

Emergency Escape Path Lights
Exit Locator Signs
Note: Only the arm rest lights are depicted in the graphic. See the
system description for complete lighting details.
