Entrance Enclosure
The entrance to the overhead flight attendant rest is an enclosure located in the
passenger cabin across from door 4L and has the same external appearance as a
lavatory, but is placarded for crew use only and utilizes a cipher lock for security.
The door should remain closed and locked at all times.
The entrance enclosure contains lighting and temperature controls, and a warning
horn shutoff switch.
An amber smoke alarm/call light is mounted on the exterior wall above the
entrance door. When smoke is detected in the overhead flight attendant rest, the
light flashes. The light illuminates steady when the attendant call button on a crew
rest PCU has been pushed.
Conditioned air is used to provide temperature control and ventilation to the
overhead flight attendant rest. This air is regulated using the temperature control
panel in the entrance enclosure.

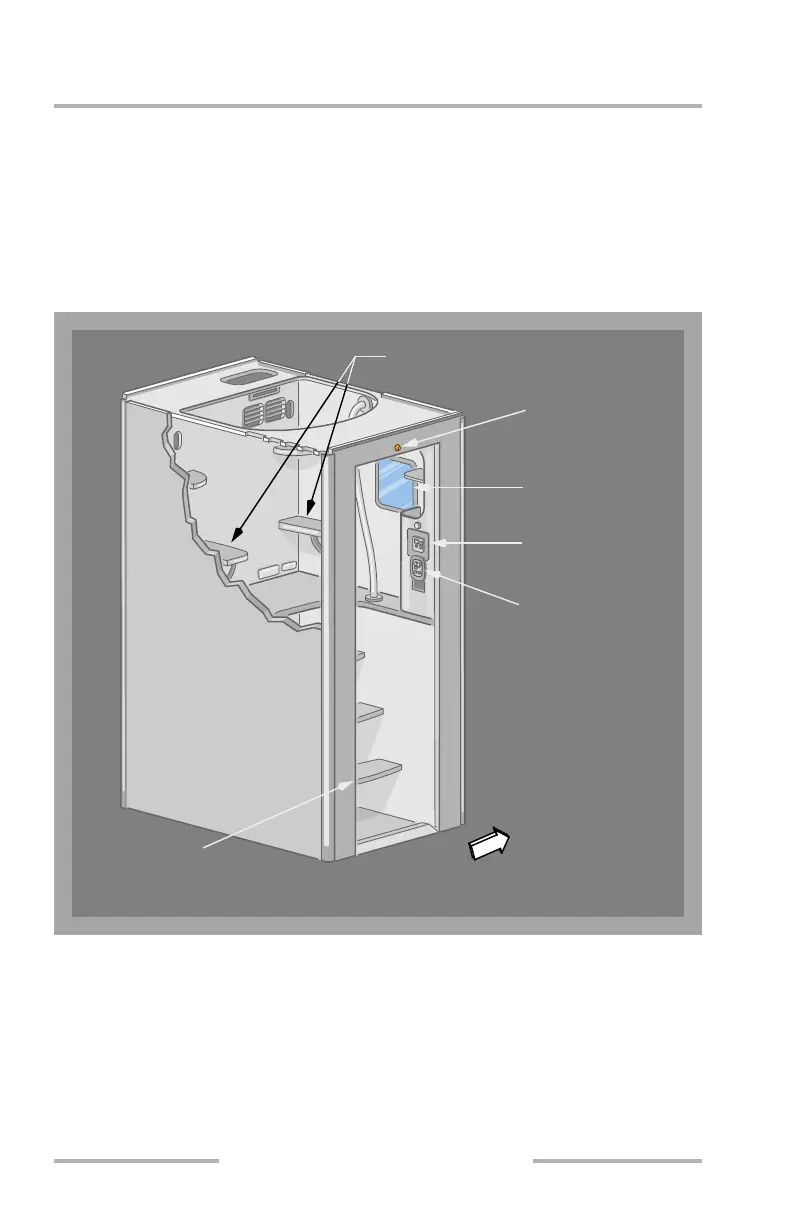

Note: Entry shown with door removed.
AFT
Temperature
Mirror
Smoke Alarm
Main Control
Left and Right
Bunk Stairs
Call Light
Control Panel
Panel
Main Stairs
August 14, 2009
To Next Page
