TO/GA mode termination:
• below 400 feet radio altitude, the AFDS remains in the go–around pitch
and roll mode unless:
• the autopilot is disconnected and both flight directors are turned off, or
• LNAV automatically engages (after automatic LNAV engagement, a
different roll mode can be selected)
• above 400 feet radio altitude, select a different MCP pitch or roll mode.

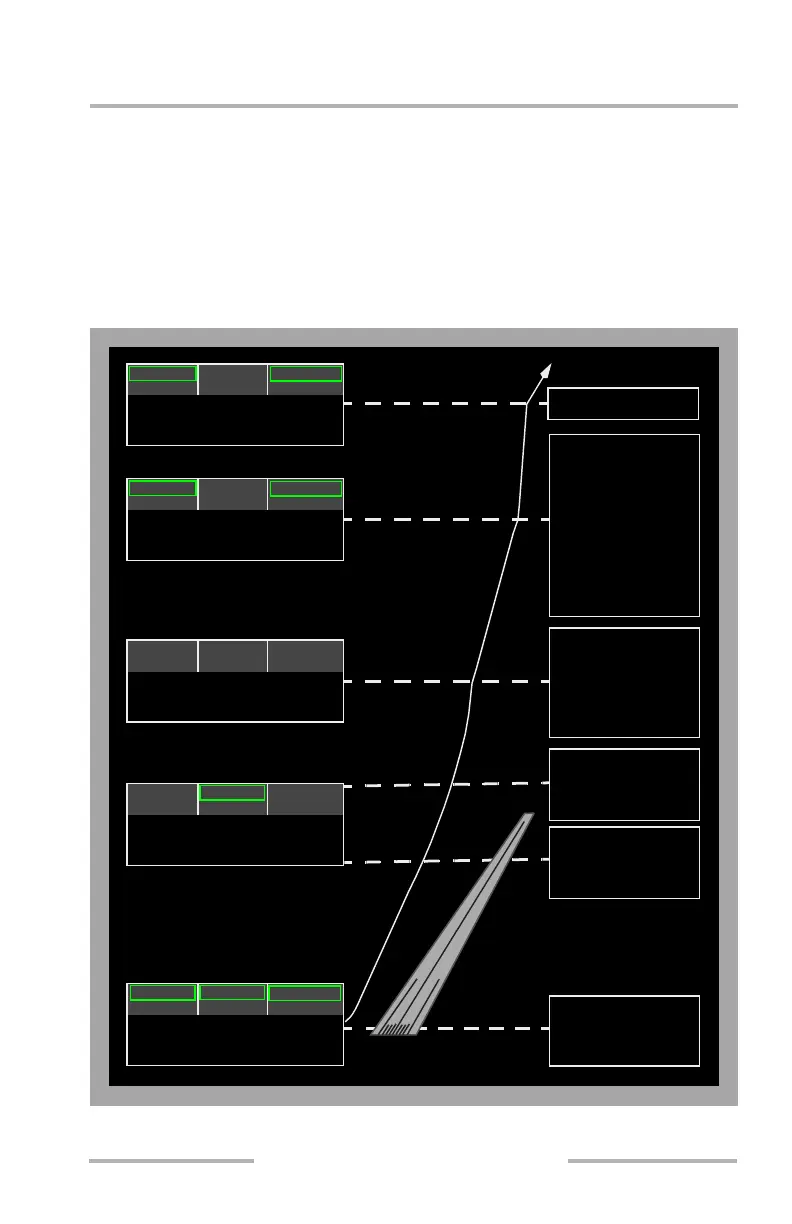

Automatic Flight Go–Around Profile
Path capture
After flap
At flap retraction
retraction, push
VNAV (or FLCH)
VNAV engages
with autothrottle
in THR REF (or
FLCH engages
with autothrottle
in THR mode)
Above 200 feet
altitude, set speed
to maneuvering
speed for the
desired flap
Push TO/GA
switch, LNAV
engages
RA, LNAV
arms
Above 400 feet
roll mode
RA, verify desired
A/P
THR REF LNAV VNAV SPD
A/P
SPD LNAV VNAV PTH
A/P
THR LNAV TO/GA
A/P
THR LNAV TO/GA
A/P
THR TO/GA TO/GA
LNAV
