Communications -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
5.10.10 D615Z003-TBC
Push – toggles through call priorities
• EMG – emergency call
• HGH – high priority call
• LOW – low priority call
Push – Displays directory of available SATCOM phone numbers by geographic
region.
SATCOM Page 2/2
Push – displays the SATCOM LOG page (controls connection to satellite).
Push – displays the directory details page (a list of phone number identifiers).
Push – returns display to main SATCOM page.
Push – displays BITE page (maintenance use only).
Push – displays controls for SATCOM configuration (maintenance use only).
6
SATCOM Call Priority Key
7
SATCOM DIRECTORY Key
1
SATCOM LOG Key
2
SATCOM DIRectory Details Key
3
SATCOM RETURN Key
4
SATCOM BITE OK Key
5
SATCOM CONFIG Key

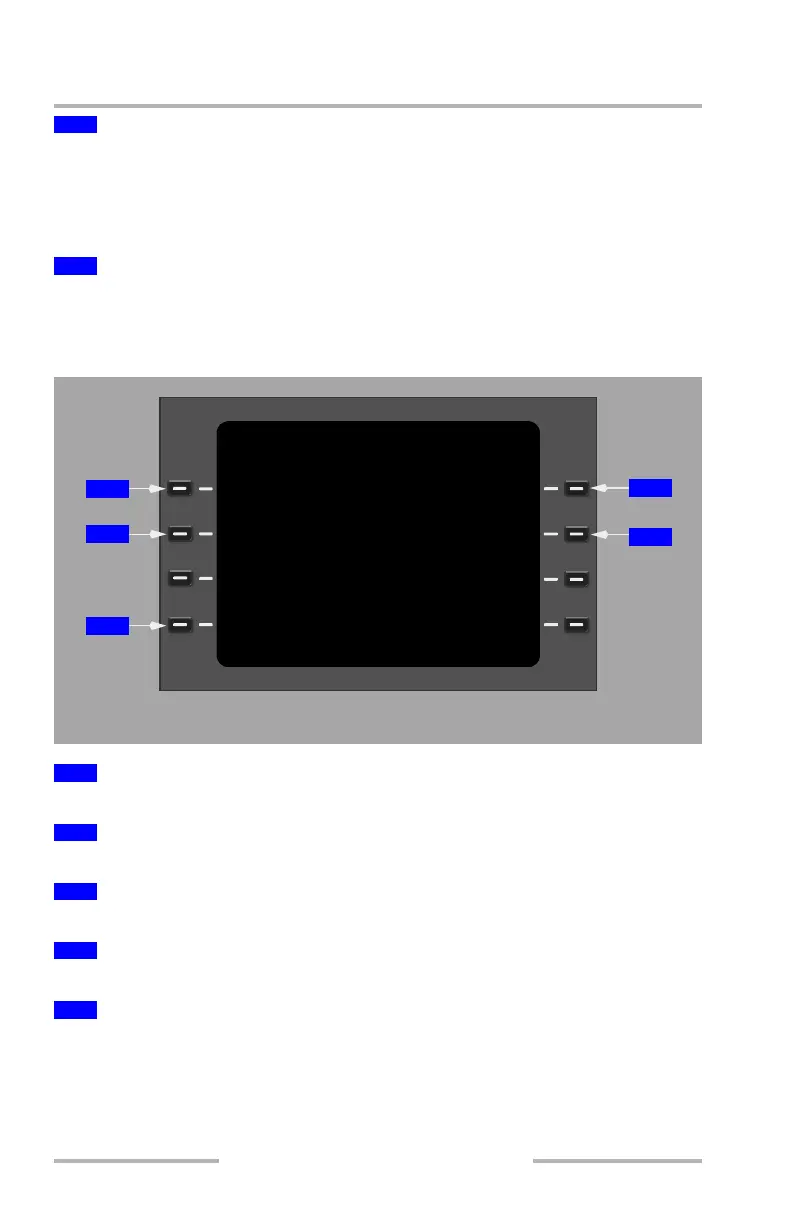

TUNING AND CONTROL PANEL
4
5
3
2
1
XXXXX
SAT
-
PHONE
NEXXX
2/2
XX
OGXXXXX
X
XXBITEHOK>L<
T-1:READYXXXXXPRIORITYAS
OAXCTRXXXXXXXXXXXXXXXXZK
IRL DETAILS--DISCONFIG>D<
T-2:READYXXXXXPRIORITYAS
IRXDETAILS--XX1CONFIG>D
<
IGHTXOPERATIONSXXXXXXXLF
ETURNXXXXXXXSATXRADIO>R
<
8.500XXXXXXXXXXXXXXXX>21
