Miscellaneous Synoptic Indications
Symbol Condition Description

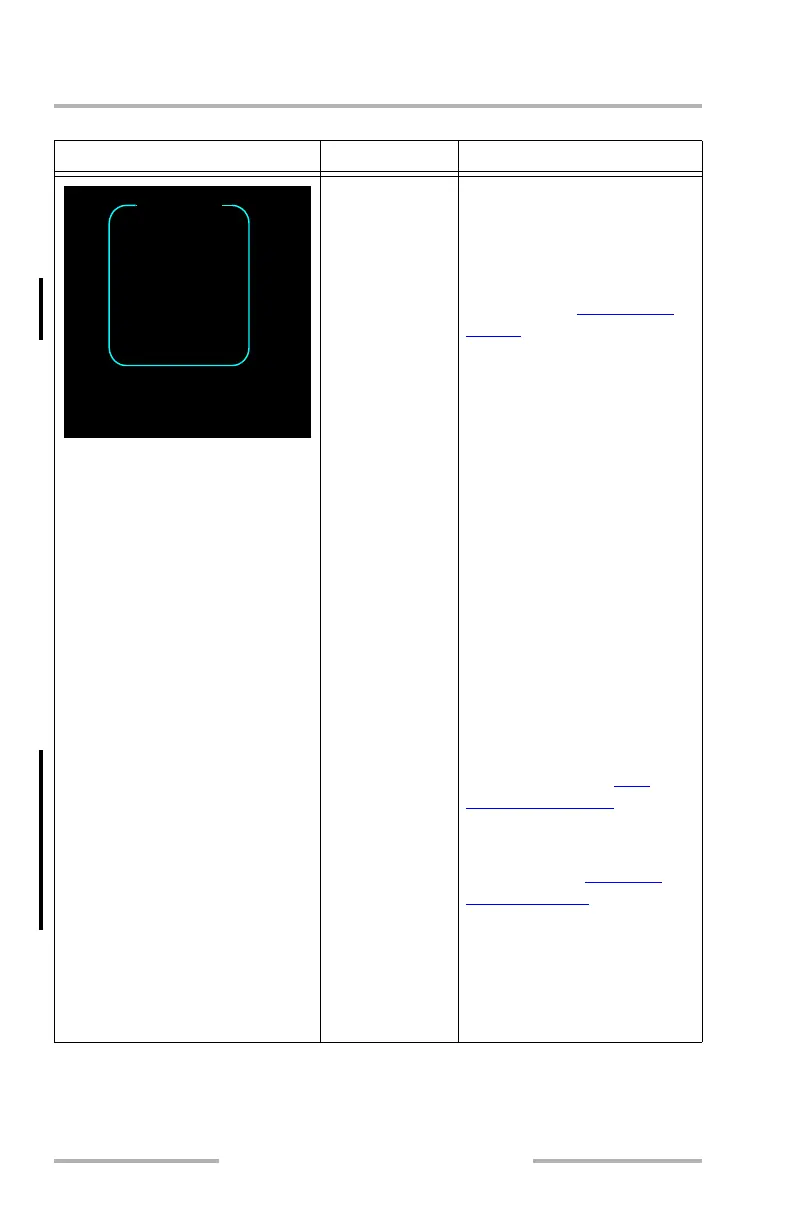

Load Shed
Message List
(white text)
Load shed alert messages are
shown here. The most recent
system impacted by load shed
is listed at the top.
AIR – LOAD SHED shows on
AIR synoptic. (Air Synoptic
Display, Ch. 2, Sec. 10)
CABIN LOADS – Power to
one or more cabin systems have
been reduced or shed: galley,
galley floor heater(s), chiller,
cabin lighting, IFE, door area
heater(s).
COMM/NAV – One or more
communication or navigation
loads have shed: VHF, TCP,
HF, ADF, SATCOM, DME,
flight interphone.
EXT LIGHTS – One or more
exterior lights have shed:
beacon, strobe, wing landing,
nose landing gear, taxi,
navigation (position), logo,
runway turnoff.
FUEL – LOAD SHED shows
on FUEL synoptic. (Fuel
Synoptic Indications, Ch. 12,
Sec. 10)
HYD – LOAD SHED shows on
HYD synoptic. (Hydraulic
Synoptic Display, Ch. 13, Sec.
10)
MISC HEATERS – One or
more heaters have shed.
WINDOW HEAT – Flight deck
window heat has shed.
LOAD SHED
HYD
FUEL
AIR
WINDOW HEAT
MISC HEATERS
EXT LIGHTS
COMM/NAV
CABIN LOADS
