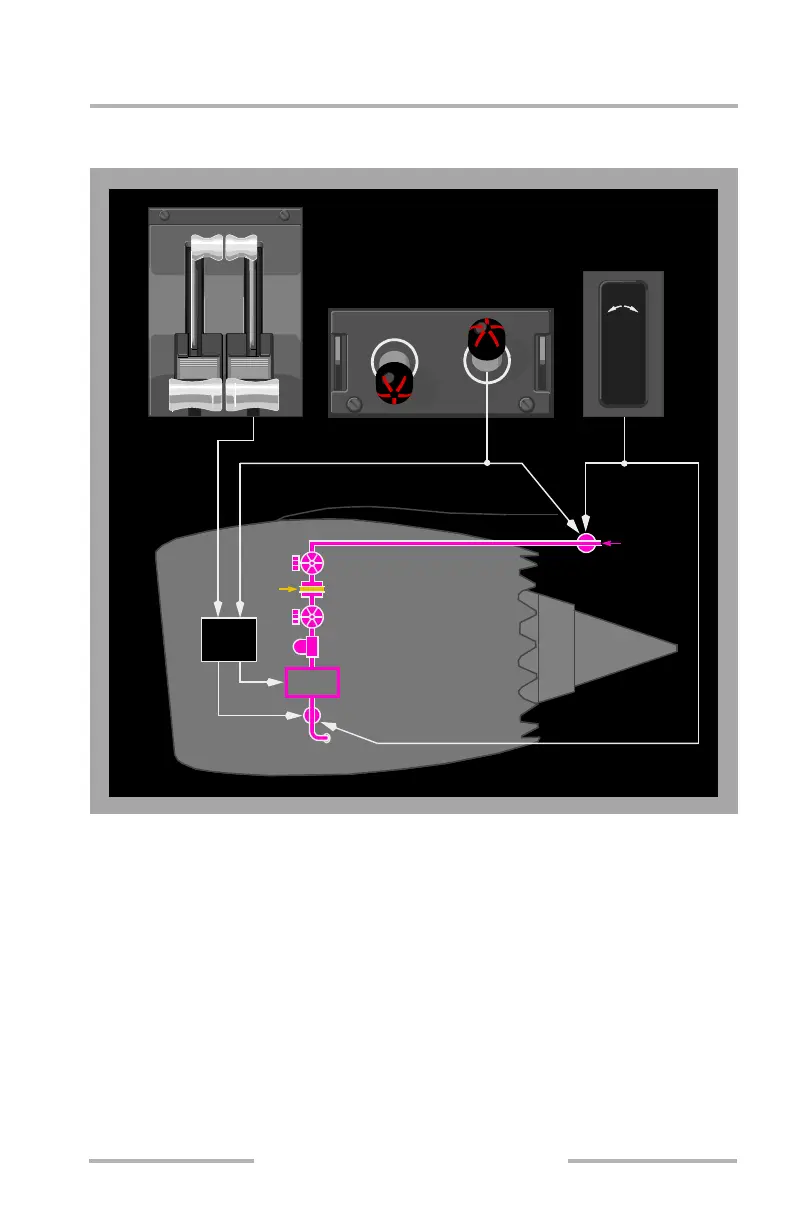

Engine Fuel System Schematic
[Option – GE engines]
Engine Fire
Switch
R
I
G
H
T
DISCH
12
L FUEL CONTROL R
RUN
CUTOFF
Fuel
Second Stage
First Stage
Spar
Engine Fuel Valve
Fuel Filter
B
Oil
Fuel/Oil Heat Exchanger
Fuel Valve
FMU
EEC
