HUD Controls

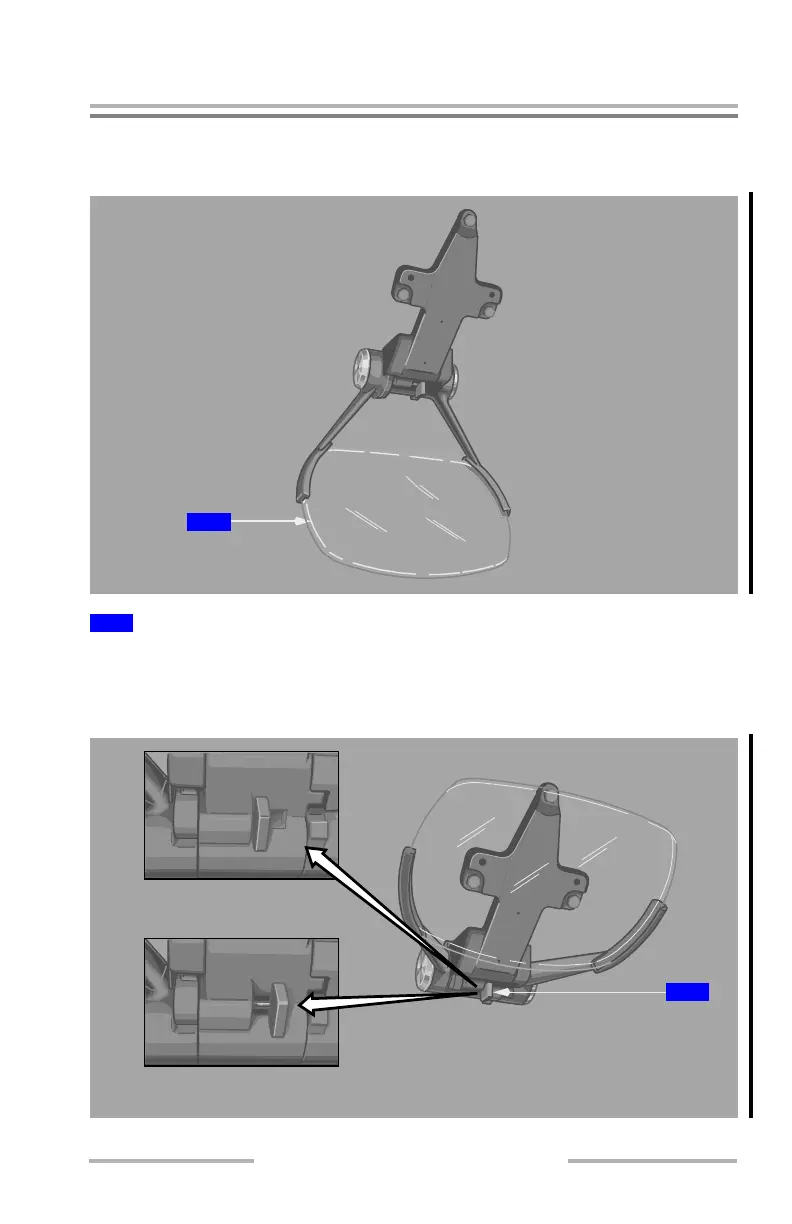

Combiner
Combines the overhead unit projected flight symbology with the pilot’s view
through forward window.
Combiner Locking Lever
1
Combiner
1
1
Locking Lever engaged
Locking Lever released
